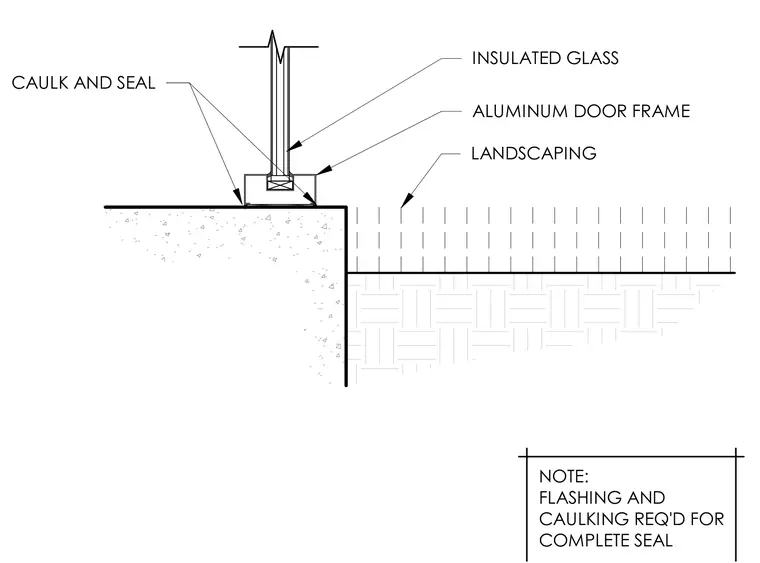

An aluminum door frame holds insulated glass and sits atop a concrete slab with adjacent landscaping. Caulk and seal are applied at the frame base and slab interface to maintain weather tightness. Flashing and caulking are required for a complete seal as noted on the drawing.
INSULATED GLASS ALUMINUM DOOR FRAME CAULK AND SEAL LANDSCAPING NOTE: FLASHING AND CAULKING REQ'D FOR COMPLETE SEAL INSULATED GLASS ALUMINUM DOOR FRAME CAULK AND SEAL LANDSCAPING NOTE: FLASHING AND CAULKING REQ'D FOR COMPLETE SEAL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
