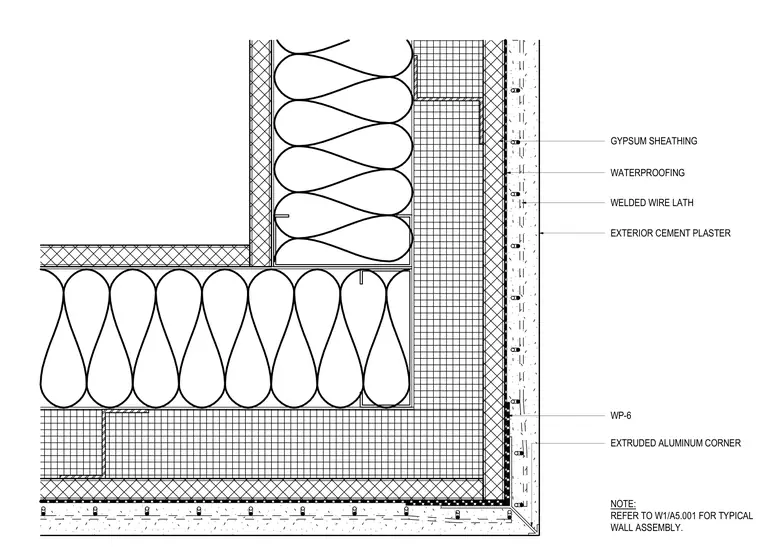

Exterior cement plaster corner condition featuring gypsum sheathing over wood framing, covered by waterproofing membrane and designated WP-6. Welded wire lath provides reinforcement for the exterior cement plaster finish coat. An extruded aluminum corner accessory is integrated at the outside corner for edge protection and alignment. Refer to W1/A5.001 for typical wall assembly details.
GYPSUM SHEATHING WATERPROOFING WELDED WIRE LATH EXTERIOR CEMENT PLASTER WP-6 EXTRUDED ALUMINUM CORNER NOTE: REFER TO W1/A5.001 FOR TYPICAL WALL ASSEMBLY.
