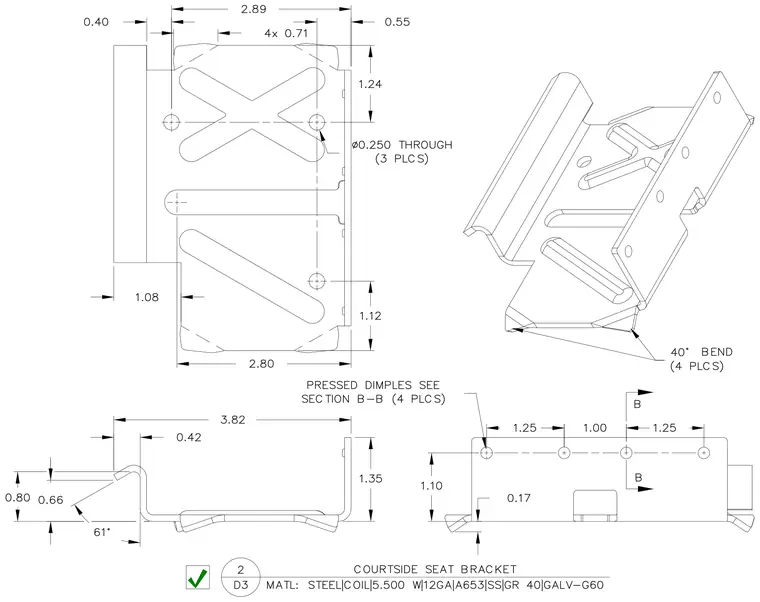

A courtside seat bracket fabricated from twelve-gauge ASTM A653 structural steel coil with a G60 galvanized finish. The part measures five and one-half inches wide with four forty-degree bends and four pressed dimples detailed in section B-B. Three quarter-inch diameter through holes are spaced along the mounting flange with dimensions of one-and-one-quarter inches, one inch, and one-and-one-quarter inches. Additional dimensional callouts detail the flange heights, bend angles of sixty-one degrees, and overall profile lengths.
2X ∅.31 1.35 61° 0.80 0.66 0.42 3.82 0.17 1.10 1.00 1.25 1.25 PRESSED DIMPLES SEE SECTION B-B (4 PLCS) B B 0.55 1.24 0.40 2.89 4x 0.71 1.12 1.08 2.80 ∅0.250 THROUGH (3 PLCS) 40° BEND (4 PLCS) COURTSIDE SEAT BRACKET 2 D3 MATL: STEEL|COIL|5.500 W|12GA|A653|SS|GR 40|GALV-G60 L 0 + + 0 0 0 + J I ( + + + A £ i V I I I II A [
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
