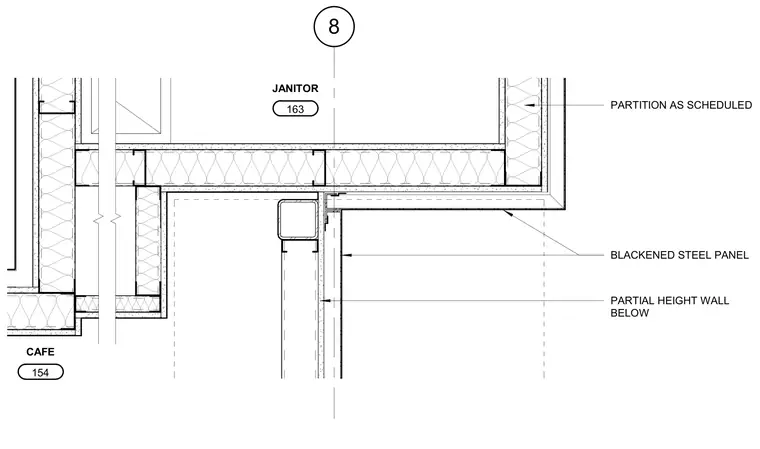

An interior wall partition meets a partial height wall clad in a blackened steel panel between a janitor room and a cafe. The partition is built as scheduled with framed construction and gypsum board finishes. A structural or framing member supports the transition above the partial height wall.
8 JANITOR 163 CAFE 154 PARTITION AS SCHEDULED PARTIAL HEIGHT WALL BELOW BLACKENED STEEL PANEL
