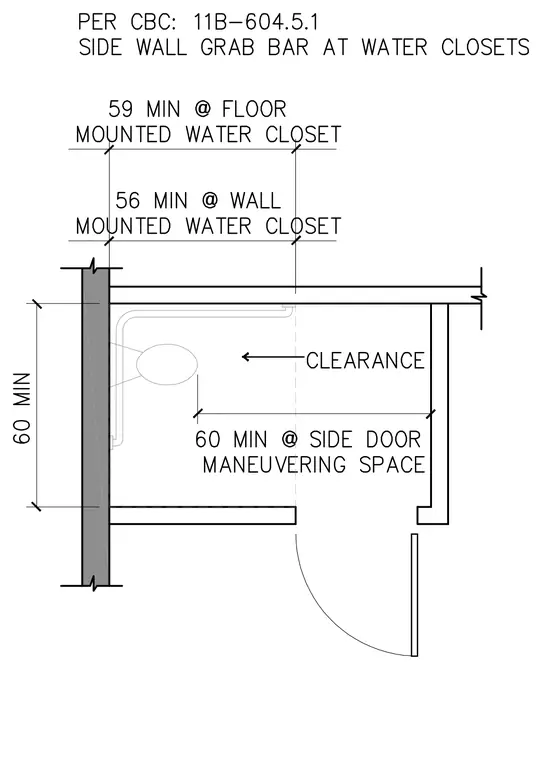

This diagram outlines the required clearances for an accessible water closet stall, specifying a minimum depth of 59 inches for floor-mounted units and 56 inches for wall-mounted units. A minimum width of 60 inches is required for the stall depth, measured from the side wall. The layout also mandates a minimum 60-inch maneuvering space at the side door to ensure compliance with accessibility standards.
