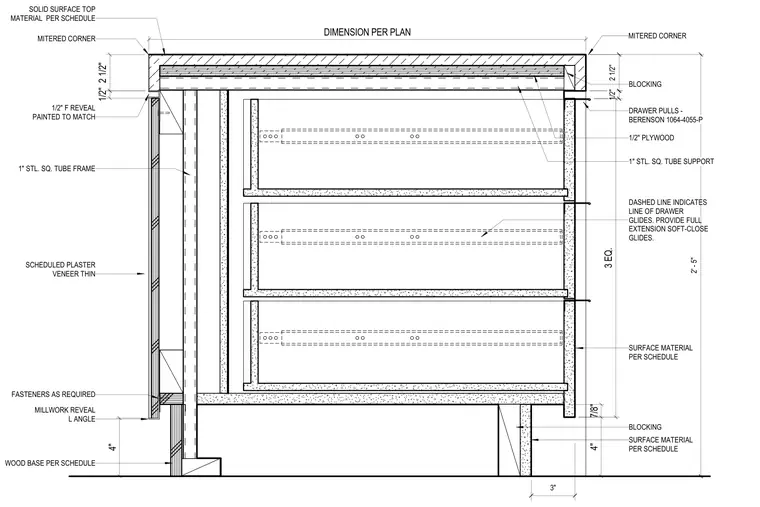

This interior millwork detail shows a reception desk section through a bank of three drawers. The solid surface top rests on two-and-a-half-inch blocking and one-half-inch plywood, supported by a one-inch steel square tube frame and one-inch steel square tube supports. The drawer boxes feature one-half-inch plywood with full-extension soft-close glides. The exterior face is finished with scheduled plaster veneer, a one-half-inch F reveal painted to match, and a millwork reveal angle above a thin wood base. Fasteners are provided as required throughout the assembly.
2' - 5" SOLID SURFACE TOP MATERIAL PER SCHEDULE 2 1/2" BLOCKING 1/2" PLYWOOD DRAWER PULLS - BERENSON 1064-4055-P SURFACE MATERIAL PER SCHEDULE SURFACE MATERIAL PER SCHEDULE 3" BLOCKING 1/2" 4" 2 1/2" 7/8" 4" SCHEDULED PLASTER VENEER THIN WOOD BASE PER SCHEDULE 1" STL. SQ. TUBE SUPPORT DASHED LINE INDICATES LINE OF DRAWER GLIDES. PROVIDE FULL EXTENSION SOFT-CLOSE GLIDES. 3 EQ. 1" STL. SQ. TUBE FRAME 1/2" DIMENSION PER PLAN FASTENERS AS REQUIRED MILLWORK REVEAL L ANGLE 1/2" F REVEAL PAINTED TO MATCH MITERED CORNER MITERED CORNER
