Architectural · A-FWMR2

West Section Stone Tiles At Level 2 Slab

Materials

Aluminum Cold-formed Steel Composite EIFS / Plaster / Stucco Metal (misc.)Stone Timber / Wood

Elements

Ceilings Decks Drainage Facades / Cladding Floors / Slabs Insulation Walls

About this detail

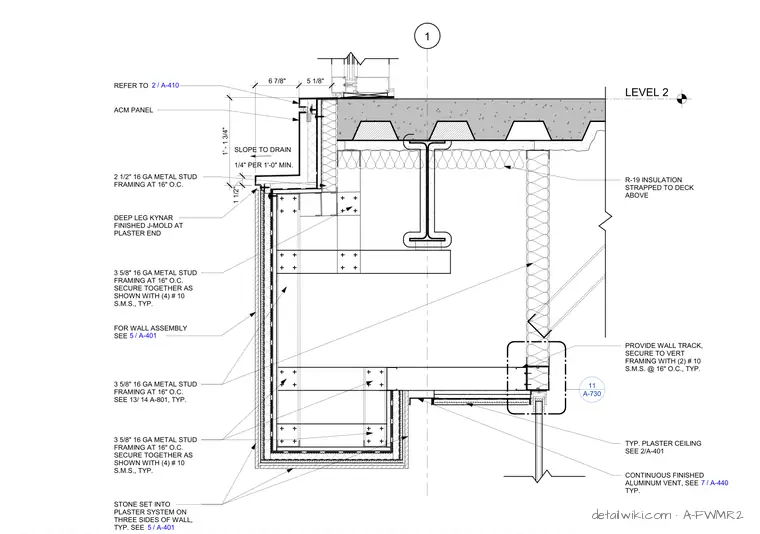

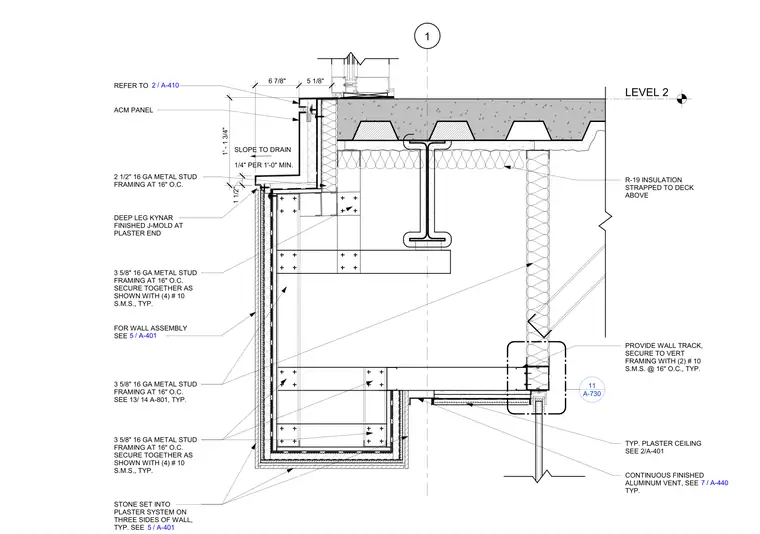

Stone tiles are set into a plaster system on three sides of the wall at the Level 2 slab edge. The assembly features an aluminum composite material panel above a deep leg Kynar finished J-mold at the plaster end. Support consists of three-and-five-eighths-inch sixteen-gauge metal studs at sixteen inches on center, secured together with four number ten sheet metal screws. The floor assembly includes a steel beam supporting a metal deck with R-nineteen insulation strapped above and a continuous finished aluminum vent below. A wall track is secured to vertical framing with two number ten sheet metal screws at sixteen inches on center.
