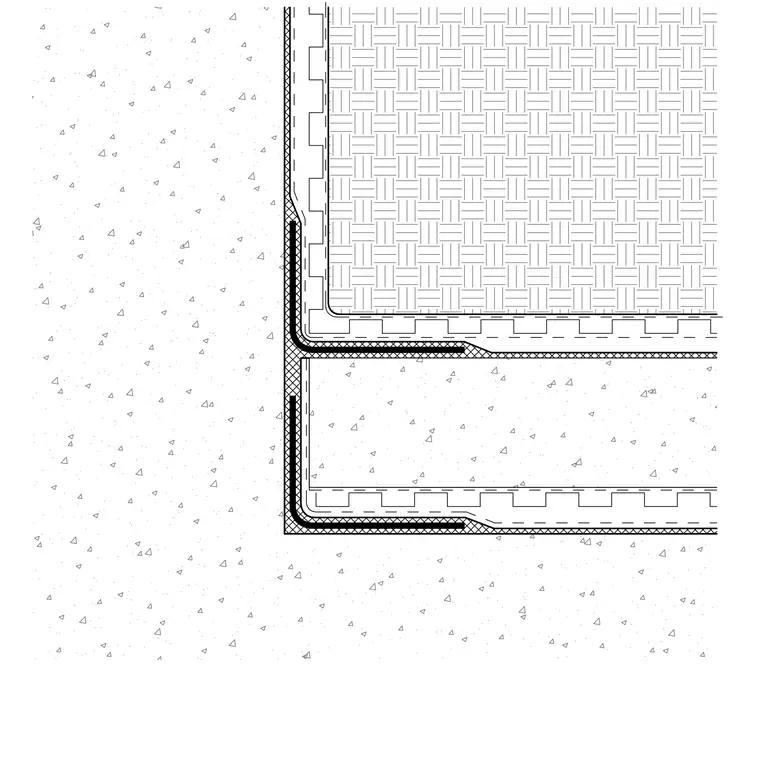

This plan detail shows the waterproofing and drainage layer build-up at a 90-degree corner of a concrete planter base. A continuous fluid-applied or sheet waterproofing membrane wraps around the interior concrete corner, protected by a drainage mat or dimpled drainage board. Soil or growing medium fills the interior zone, bearing over a filter fabric and drainage core layer.
