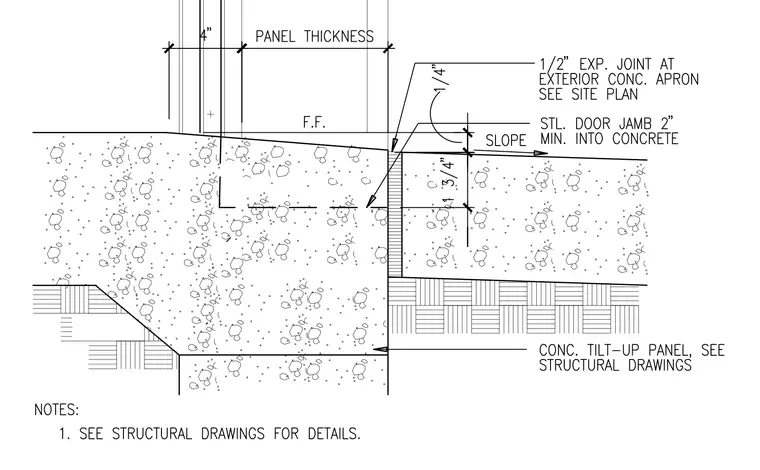

A concrete tilt-up wall panel transitions to an exterior concrete apron at the finished floor line. A one-half-inch expansion joint is provided at the exterior concrete apron as detailed on the site plan. The steel door jamb extends two inches minimum into the concrete, featuring a sloped surface. The concrete tilt-up panel thickness is dimensioned with a four-inch offset at the base. Additional structural connection details are deferred to the structural drawings.
