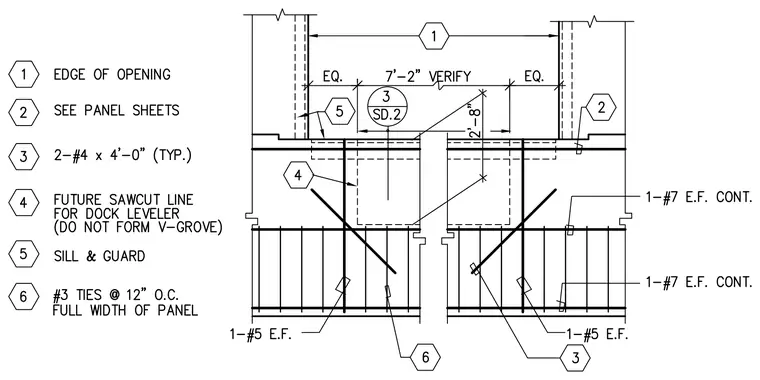

Precast concrete wall panels feature a framed opening with a clear dimension of 7 feet 2 inches verified in the field. The assembly includes two number 4 reinforcing bars measuring 4 feet 0 inches long at typical locations, along with number 3 ties spaced at 12 inches on center across the full width of the panel. Horizontal continuous reinforcement consists of one number 5 bar each face and one number 7 bar each face continuously. A designated future sawcut line for a dock leveler is marked to be cut without forming a v-grove. Sills and guards are positioned at the opening edges per the panel sheets.
