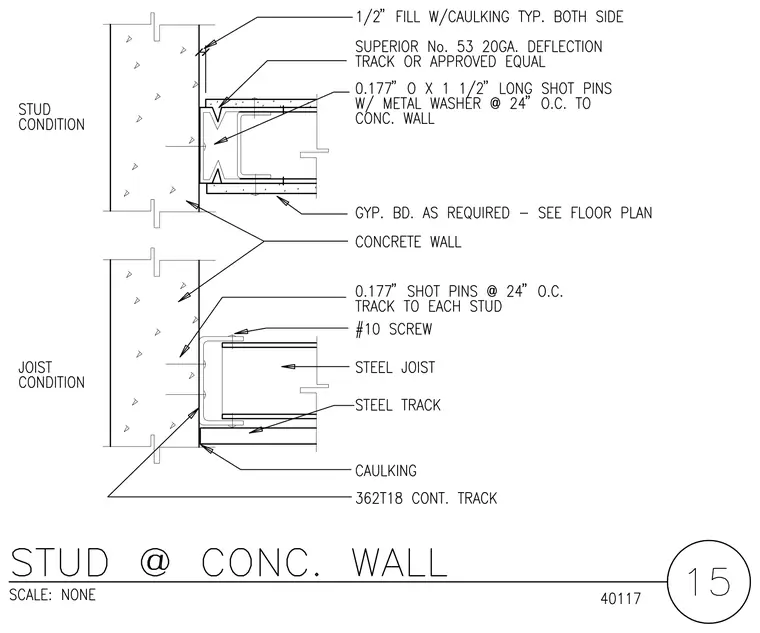

Cold-formed steel studs and joists attach to a concrete wall using deflection tracks and continuous steel tracks anchored with shot pins. The stud condition features a twenty-gauge deflection track fastened to the concrete wall with zero-point-one-seventy-seven-inch diameter by one-and-a-half-inch long shot pins with metal washers spaced at twenty-four inches on center, supplemented by a one-half-inch fill with caulking typically on both sides. Gypsum board is installed as required per the floor plan. The joist condition utilizes a continuous steel track secured to the concrete wall with zero-point-one-seventy-seven-inch shot pins at twenty-four inches on center, with steel joists fastened to the track using number ten screws and caulking applied at the interface.
