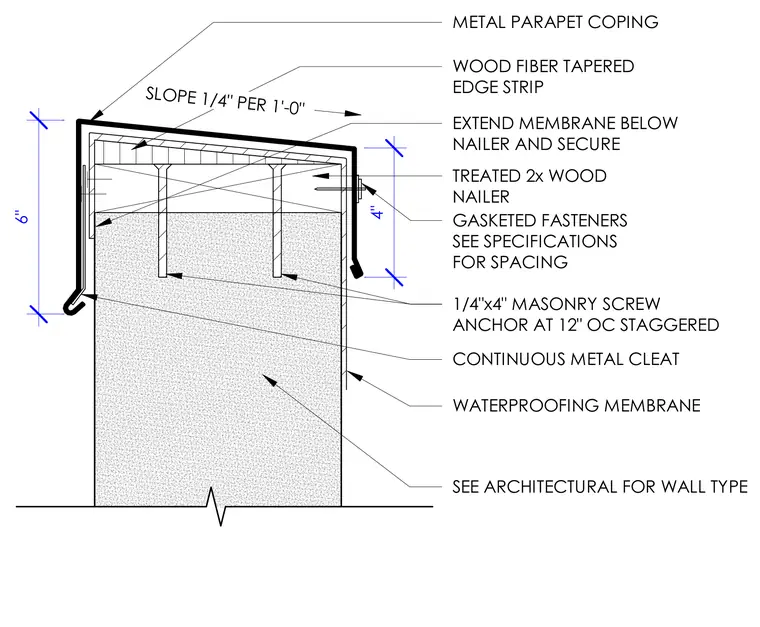

A metal parapet coping caps the top of the masonry wall, secured over a treated two-by wood nailer and a wood fiber tapered edge strip that provides a slope of one-quarter inch per one foot. A waterproofing membrane extends below the wood nailer and is secured by quarter-inch by four-inch masonry screw anchors spaced at twelve inches on center staggered. A continuous metal cleat engages the outer edge of the coping, fastened with gasketed fasteners spaced per specifications.
TREATED 2x WOOD NAILER WOOD FIBER TAPERED EDGE STRIP EXTEND MEMBRANE BELOW NAILER AND SECURE METAL PARAPET COPING CONTINUOUS METAL CLEAT GASKETED FASTENERS SEE SPECIFICATIONS FOR SPACING 1/4"x4" MASONRY SCREW ANCHOR AT 12" OC STAGGERED WATERPROOFING MEMBRANE SLOPE 1/4" PER 1'-0" 6" 4" SEE ARCHITECTURAL FOR WALL TYPE
