Architectural · A-FVWY7

Stone Detail

Materials

Elements

Expansion / Control Joints Facades / Cladding

About this detail

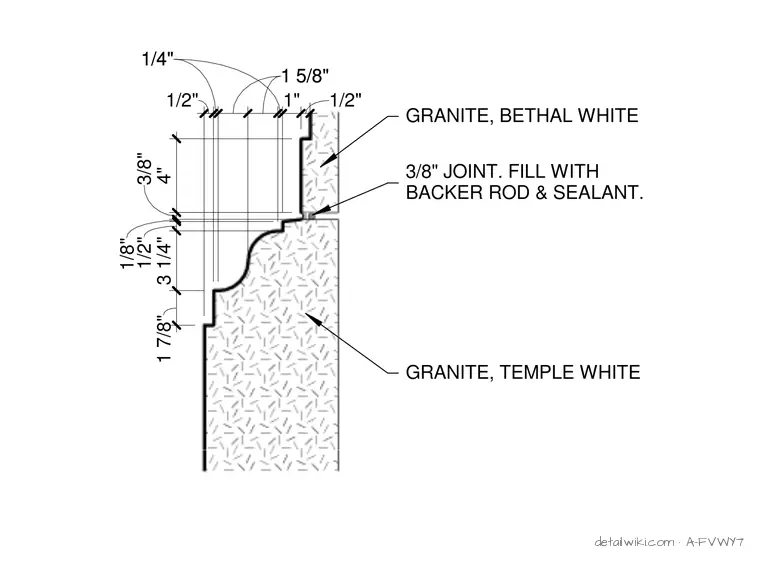

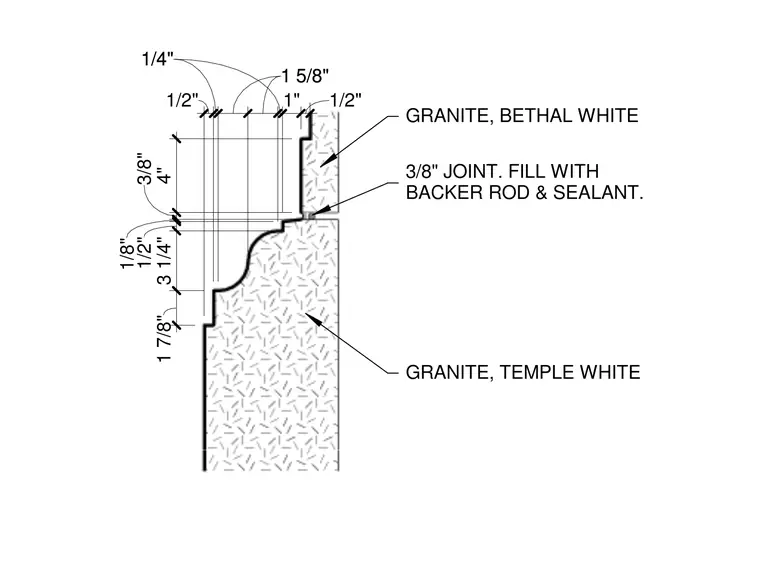

This architectural detail shows a horizontal joint and decorative profile connection between Bethal White granite and Temple White granite panels. The vertical joint measures three-eighths of an inch and is filled with a backer rod and sealant. Dimensional callouts indicate profile recesses and projections including one-fourth inch, one-half inch, one inch, one and five-eighths inch, four inch, three-eighths inch, one-eighth inch, three and one-fourth inch, and one and seven-eighths inch increments.
