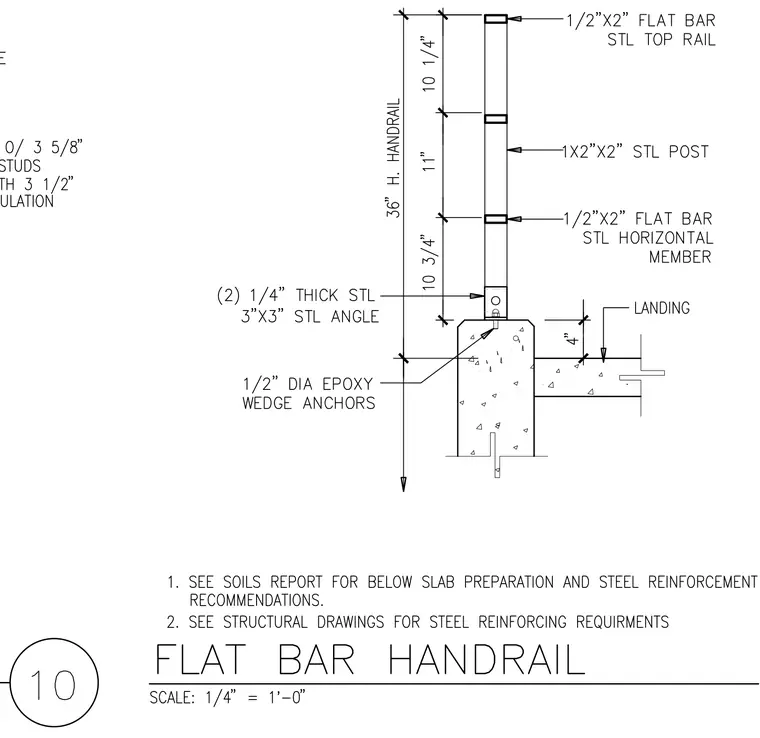

A steel flat bar handrail mounts to a concrete landing. The railing assembly consists of a 1/2" x 2" steel flat bar top rail, 1" x 2" steel posts, and 1/2" x 2" steel horizontal members. The posts are secured to the concrete landing using two 1/4" thick steel 3" x 3" angles anchored with 1/2" diameter epoxy wedge anchors. Dimensions indicate a 36" handrail height with vertical spacings of 10 1/4", 11", and 10 3/4" between components.
