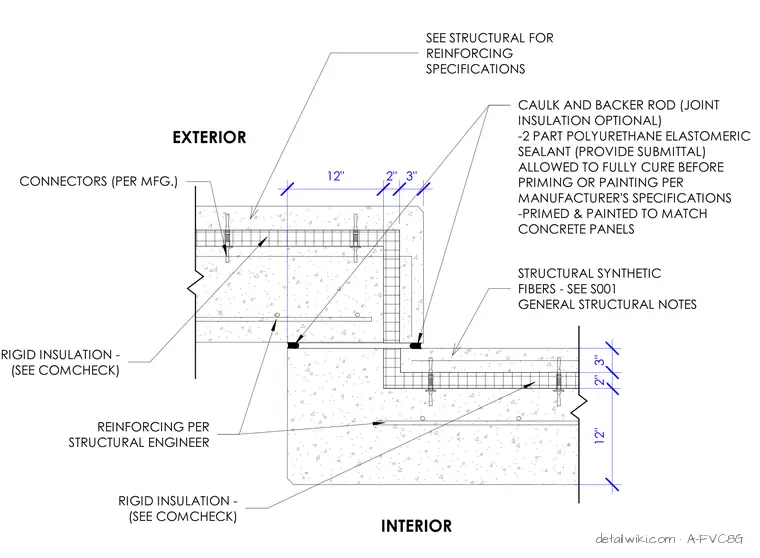

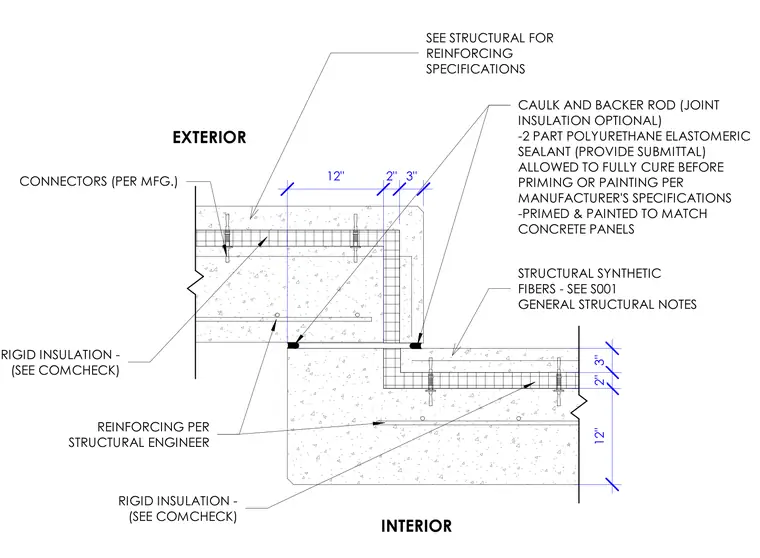

A stepped joint connects two insulated concrete sandwich panels. The assembly incorporates rigid insulation sized per COMcheck requirements and structural synthetic fibers specified per general structural notes. A backer rod and two-part polyurethane elastomeric sealant seal the joint; the sealant must fully cure before priming and painting to match the concrete panels. Panel connectors are provided per the manufacturer, and reinforcing steel is installed according to the structural engineer's specifications.
Text on the drawing
CAULK AND BACKER ROD (JOINT INSULATION OPTIONAL) -2 PART POLYURETHANE ELASTOMERIC SEALANT (PROVIDE SUBMITTAL) ALLOWED TO FULLY CURE BEFORE PRIMING OR PAINTING PER MANUFACTURER'S SPECIFICATIONS -PRIMED & PAINTED TO MATCH CONCRETE PANELS RIGID INSULATION - (SEE COMCHECK) CONNECTORS (PER MFG.) SEE STRUCTURAL FOR REINFORCING SPECIFICATIONS REINFORCING PER STRUCTURAL ENGINEER INTERIOR EXTERIOR 12" 2" 3" 12" 2" 3" RIGID INSULATION - (SEE COMCHECK) STRUCTURAL SYNTHETIC FIBERS - SEE S001 GENERAL STRUCTURAL NOTES
