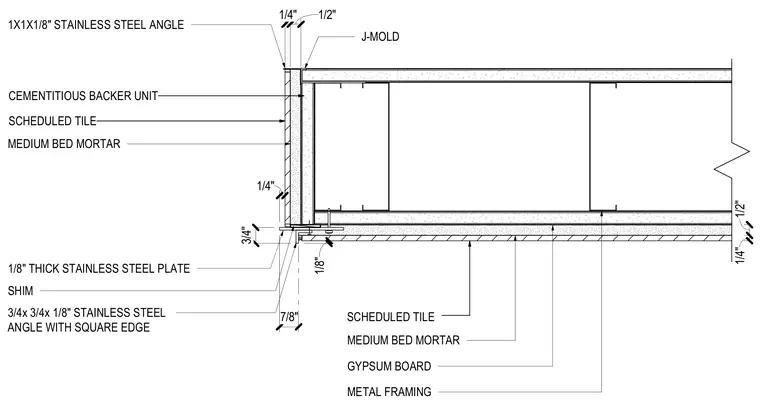

This wall corner detail features a one-by-one-inch by one-eighth-inch stainless steel angle and a three-quarter by three-quarter by one-eighth-inch stainless steel angle with a square edge framing the outside corner. A one-eighth-inch thick stainless steel plate and shims sit beneath the base transition. Cementitious backer units and metal framing support scheduled tile set in medium bed mortar. A J-mold edge trim finishes the adjacent gypsum board surface.
SCHEDULED TILE MEDIUM BED MORTAR SCHEDULED TILE MEDIUM BED MORTAR METAL FRAMING 1X1X1/8" STAINLESS STEEL ANGLE GYPSUM BOARD 3/4x 3/4x 1/8" STAINLESS STEEL ANGLE WITH SQUARE EDGE 1/4" 1/2" 1/4" 1/2" CEMENTITIOUS BACKER UNIT 1/8" THICK STAINLESS STEEL PLATE 1/8" 1/4" 3/4" 7/8" SHIM J-MOLD
