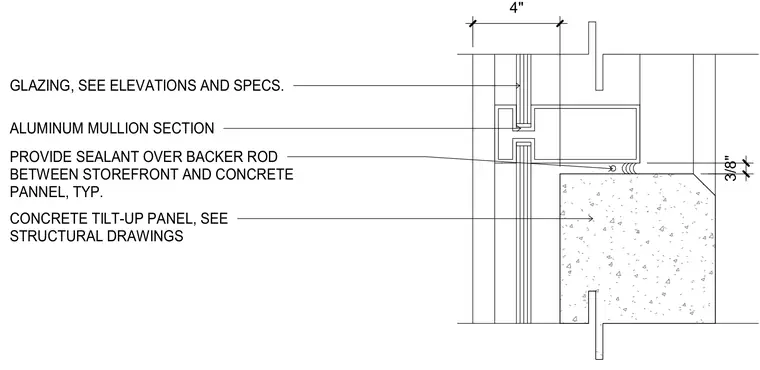

An aluminum framing mullion section integrates with a concrete tilt-up panel, maintaining a three-eighths-inch joint gap. Flexible sealant placed over a backer rod seals the transition between the storefront assembly and the concrete panel. Glazing infill installs within the aluminum profiles per architectural elevations and specifications, while the structural concrete panel details are coordinated separately on structural drawings.
CONCRETE TILT-UP PANEL, SEE STRUCTURAL DRAWINGS PROVIDE SEALANT OVER BACKER ROD BETWEEN STOREFRONT AND CONCRETE PANNEL, TYP. ALUMINUM MULLION SECTION GLAZING, SEE ELEVATIONS AND SPECS. 4" 3/8" Scale. 1" = 10'-0"
