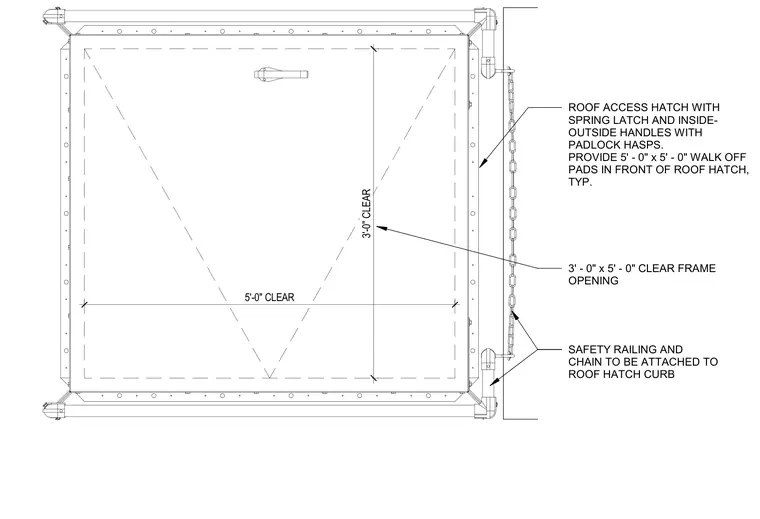

A roof access hatch features a three-foot by five-foot clear frame opening equipped with a spring latch and inside and outside handles with padlock hasps. A safety railing and chain attach directly to the roof hatch curb to guard the opening. Five-foot by five-foot walk-off pads are provided typically in front of the hatch.
5'-0" CLEAR 3'-0" CLEAR SAFETY RAILING AND CHAIN TO BE ATTACHED TO ROOF HATCH CURB ROOF ACCESS HATCH WITH SPRING LATCH AND INSIDE- OUTSIDE HANDLES WITH PADLOCK HASPS. PROVIDE 5' - 0" x 5' - 0" WALK OFF PADS IN FRONT OF ROOF HATCH, TYP. 3' - 0" x 5' - 0" CLEAR FRAME OPENING
