Elevator Mounting Heights

Elements

About this detail

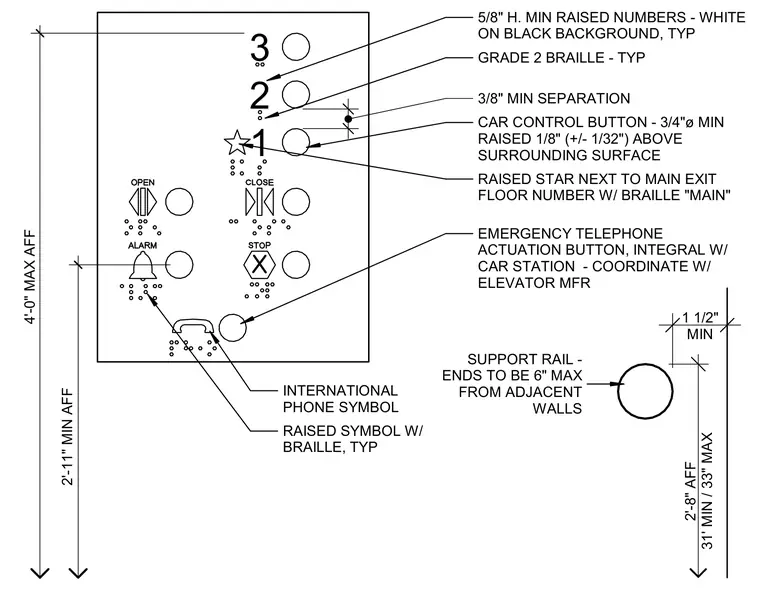

Elevator car control panels feature three-quarter-inch diameter buttons raised one-eighth inch above the surrounding surface with five-eighth-inch high raised numbers and Grade 2 braille. Main exit floor numbers include a raised star symbol, and emergency telephone actuation buttons are integrated with the car operating station. Support rails are positioned with vertical dimensions ranging from two feet eleven inches to four feet above the finished floor, maintaining specific clearances from adjacent walls.
