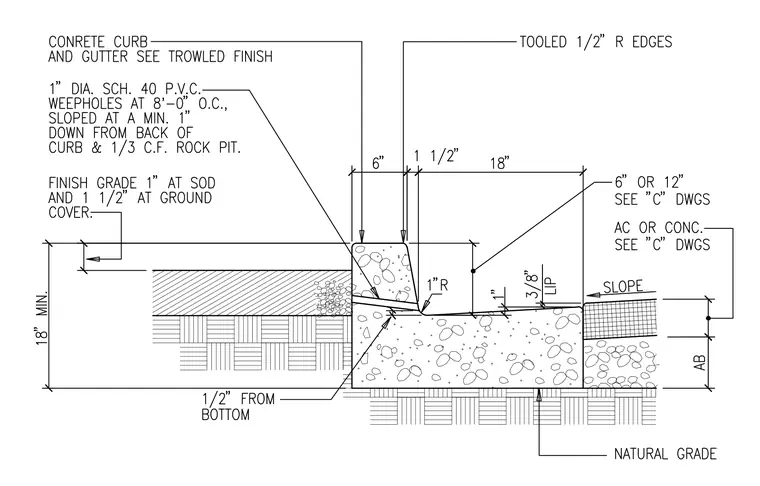

A concrete curb and gutter assembly with tooled 1/2-inch radius edges and a 1-inch radius at the base. A 1-inch diameter Schedule 40 PVC weephole is installed at 8 feet on center, sloped at a minimum of 1 inch down from the back of the curb toward a 1/3 cubic foot rock pit. Finish grade is set at 1 inch at sod and 1 1/2 inches at ground cover behind the curb. Asphalt concrete or concrete pavement dimensions and depths are coordinated per civil drawings.
