Architectural · A-FT6FR

Clear Width of Doorways

Elements

About this detail

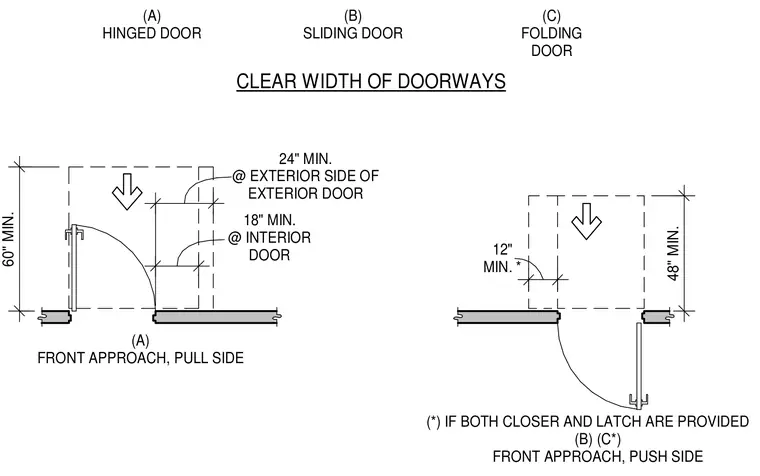

Accessible approach clearances for hinged, sliding, and folding doorways. Front approach pull side requires a minimum 60-inch depth and 48-inch width with specific side clearances. Front approach push side requires a minimum 48-inch depth. Side clearances include 12 inches minimum for doors with both a closer and latch, 18 inches minimum at interior doors, and 24 inches minimum at the exterior side of exterior doors.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
