Architectural · A-FT66Q

Intermediate Landing Stair Connection and Tread Detail

Materials

Elements

About this detail

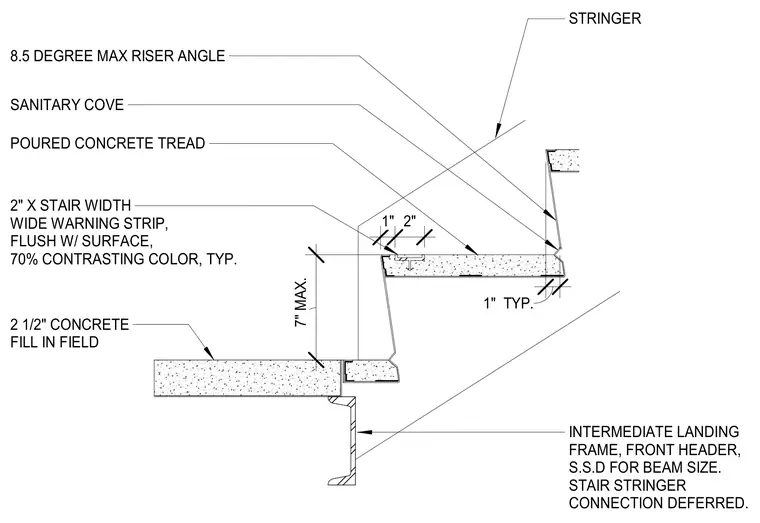

An intermediate stair landing features a front header frame supporting a structural steel stair stringer with a deferred connection. The assembly receives two and one half inches of poured concrete fill in the field, topped by poured concrete treads with an integrated sanitary cove. A two-inch wide warning strip with a seventy percent contrasting color sits flush with the tread surface. Riser geometry maintains a maximum seven-inch height with an eight and one half degree maximum riser angle.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
