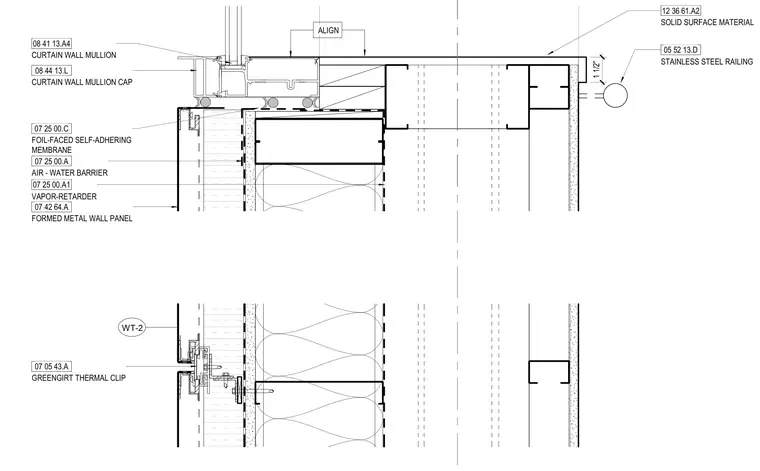

A curtain wall sill mullion interfaces with a curtain wall mullion cap and aligns with a solid surface material top. A foil-faced self-adhering membrane combines with an air-water barrier and a vapor-retarder behind a formed metal wall panel. Greengirt thermal clips secure the exterior wall assembly. A stainless steel railing mounts to the exterior face with a one-and-a-half-inch offset.
ALIGN 08 41 13.A4 CURTAIN WALL MULLION 08 44 13.L CURTAIN WALL MULLION CAP 07 25 00.C FOIL-FACED SELF-ADHERING MEMBRANE 07 25 00.A AIR - WATER BARRIER 07 25 00.A1 VAPOR-RETARDER 07 42 64.A FORMED METAL WALL PANEL 07 05 43.A GREENGIRT THERMAL CLIP 05 52 13.D STAINLESS STEEL RAILING 12 36 61.A2 SOLID SURFACE MATERIAL WT-2 1 1/2"
