The head condition for a Won-Door system is integrated with a rated wall assembly and structural hollow structural section columns. Two layers of five-eighths-inch Type X gypsum board are applied to each side to achieve a two-hour fire rating at the door pocket. A recessed box for electrical power connection is coordinated within the pocket framing. Alignment dimensions locate the centerlines of steel relative to the manufacturer requirements and existing wall assemblies.

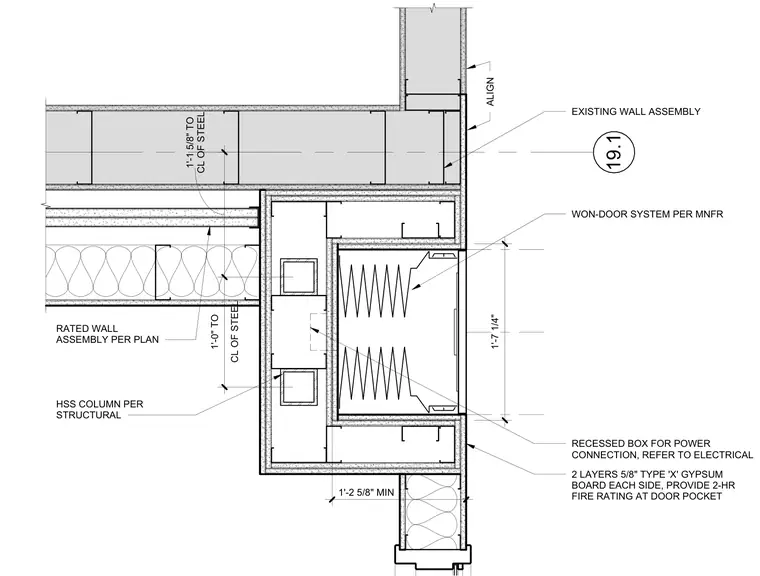

ALIGN 19.1 CL OF STEEL 1'-0" TO CL OF STEEL 1'-1 5/8" TO WON-DOOR SYSTEM PER MNFR 2 LAYERS 5/8" TYPE 'X' GYPSUM BOARD EACH SIDE, PROVIDE 2-HR FIRE RATING AT DOOR POCKET RECESSED BOX FOR POWER CONNECTION, REFER TO ELECTRICAL EXISTING WALL ASSEMBLY HSS COLUMN PER STRUCTURAL RATED WALL ASSEMBLY PER PLAN 1'-2 5/8" MIN 1'-7 1/4"
