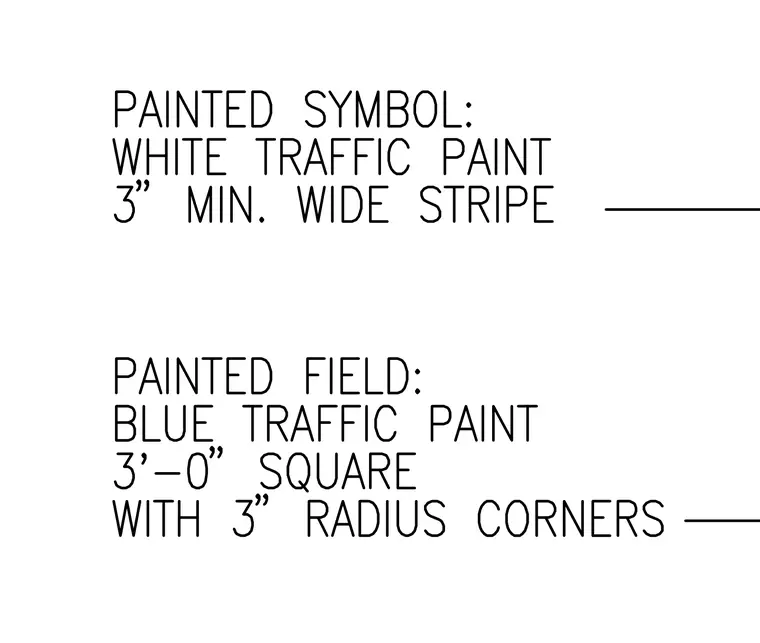

An accessible parking pavement marking detail specifies a white traffic paint symbol with a three-inch minimum wide stripe. A blue traffic paint field is detailed as three feet square with three-inch radius corners.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
