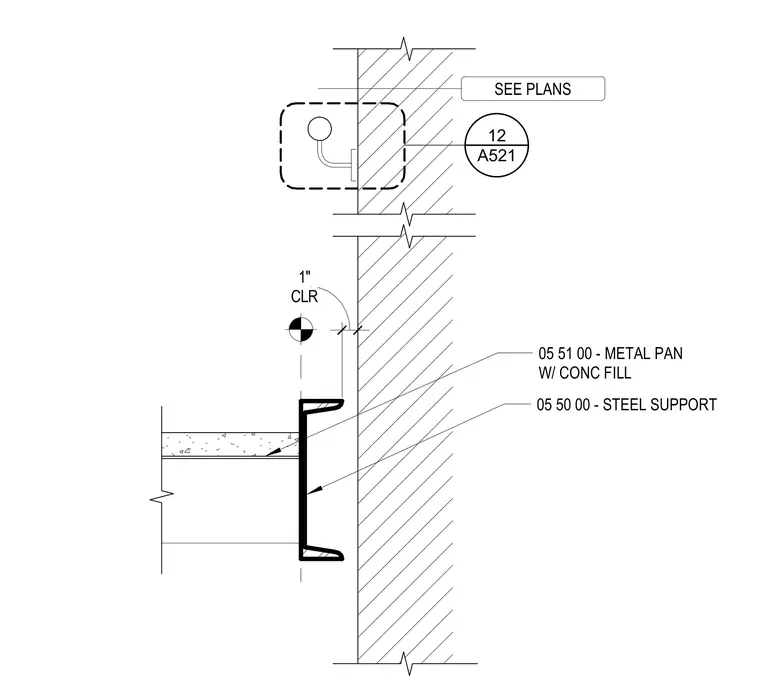

A metal pan with concrete fill is supported by a structural steel channel fastened adjacent to a concrete wall with a one-inch clearance. The steel support is sized per plan and connects to the concrete wall assembly.
CLR 1" 05 51 00 - METAL PAN W/ CONC FILL SEE PLANS 05 50 00 - STEEL SUPPORT A521 12
