Architectural · A-FSAF6

Storefront Base at Concrete Curb and Slab Edge

Materials

Concrete Steel Glass / Glazing Aluminum Metal (misc.)

Elements

Walls Storefronts Facades / Cladding Floors / Slabs Decks Waterproofing / Flashing Site / Paving Anchors / Embeds Roof / Floor Openings

Connections

Base Plate / Anchorage Bolted Connection

About this detail

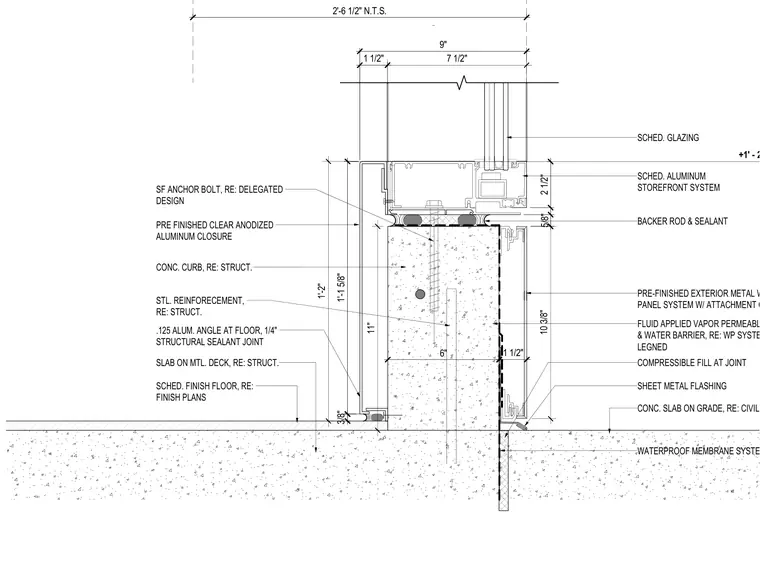

An aluminum storefront system sits atop a concrete curb anchored with five-eighths inch storefront anchor bolts designed per delegated engineering. A pre-finished clear anodized aluminum closure and backer rod with sealant seal the sill joint. Below the curb, a pre-finished exterior metal wall panel system with attachment clips attaches over a fluid-applied vapor-permeable air and water barrier and waterproof membrane system. A point-twig point-one-two-five inch aluminum angle at the floor secures the assembly with a one-quarter inch structural sealant joint above the scheduled finish floor and slab on metal deck. Compressible fill is placed at the joint above the concrete slab on grade.
