This assembly provides an air-tight seal between the underside of a metal roof deck and the top of a penthouse partition wall. Premanufactured deck enclosures are installed within the deck flutes to block air passage. An air-tight flute filler is applied to ensure a continuous seal at the intersection. The metal roof deck is specified to extend beyond the limits of the partition wall to accommodate construction variances.
Text on the drawing

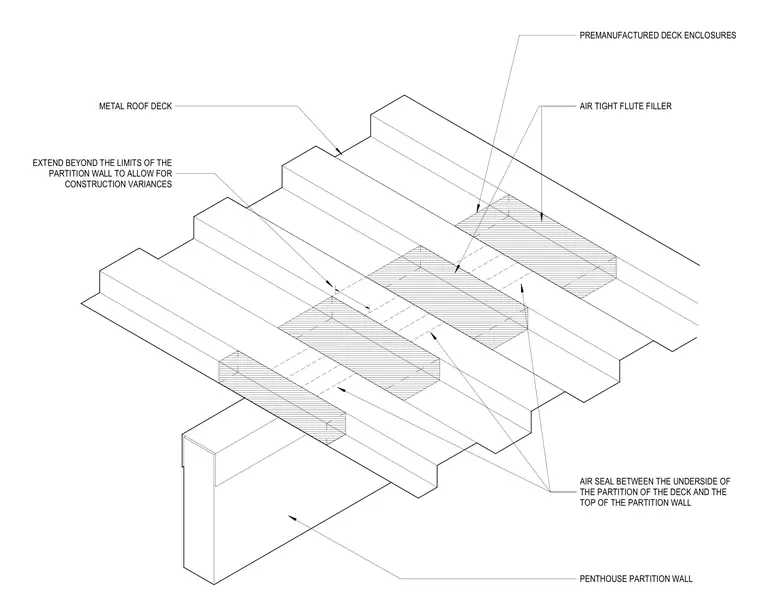

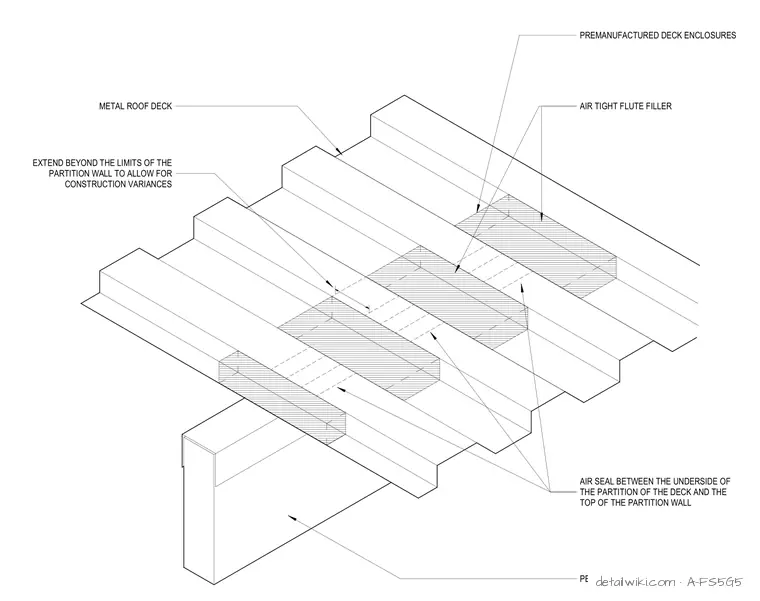

AIR TIGHT FLUTE FILLER AIR SEAL BETWEEN THE UNDERSIDE OF THE PARTITION OF THE DECK AND THE TOP OF THE PARTITION WALL PENTHOUSE PARTITION WALL PREMANUFACTURED DECK ENCLOSURES METAL ROOF DECK EXTEND BEYOND THE LIMITS OF THE PARTITION WALL TO ALLOW FOR CONSTRUCTION VARIANCES
