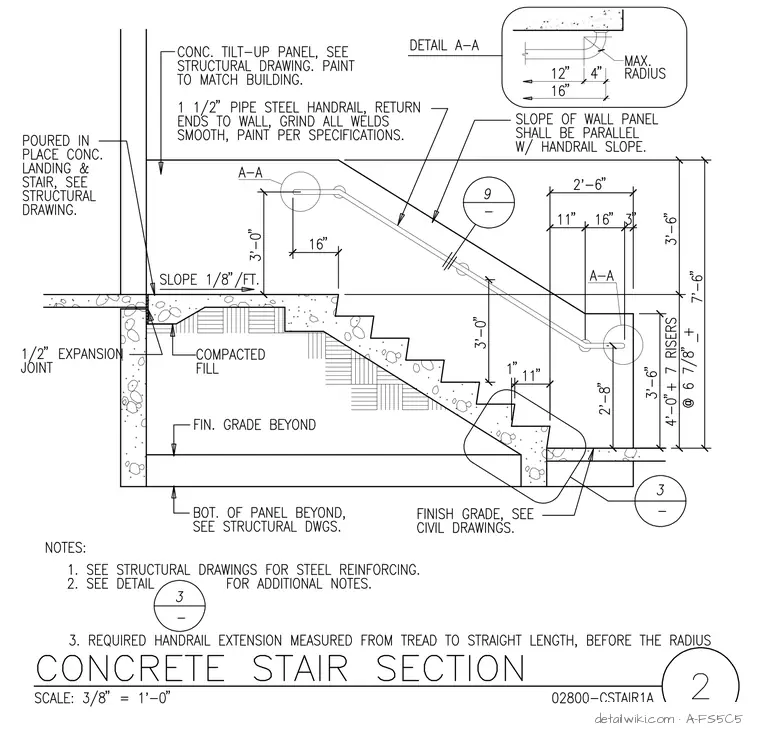

This concrete stair section details a poured-in-place concrete landing and stair set adjacent to a concrete tilt-up wall panel, with a one-and-a-half-inch pipe steel handrail returning to the wall. The landing features a one-eighth-inch per foot slope over compacted fill and a half-inch expansion joint separating it from the adjacent construction. The handrail mounts parallel to the wall panel slope with specified vertical clearances of three feet above the stair nosing and a bottom return height of two feet eight inches. Stair risers are dimensioned at four feet zero inches plus seven risers at six and seven-eighths inches. Notes reference structural drawings for steel reinforcing and civil drawings for finish grade.
