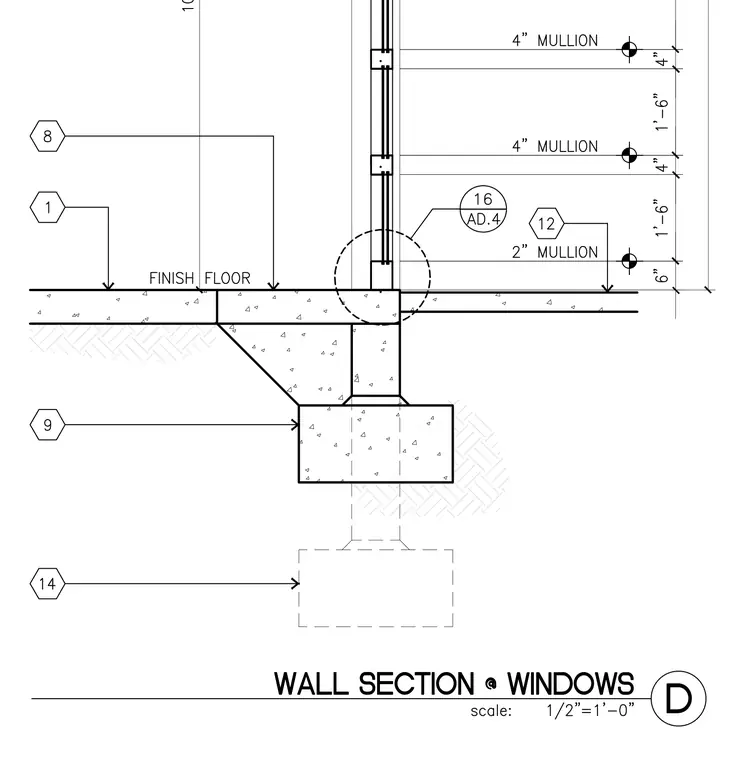

This wall section details the vertical assembly intersecting a concrete foundation and finish floor with multi-tier window framing. The exterior glazing system incorporates four-inch and two-inch mullions spaced at vertical dimensions including one foot six inches and four inches. The concrete slab bears on a foundation stem wall with a stepped footing profile. Detail callout markers reference related sheets for specific connection interfaces.
