Architectural · A-FS37Q

Thickened Concrete Paving Slab Edge

Materials

Concrete Steel

Elements

Walls Floors / Slabs Expansion / Control Joints Site / Paving Reinforcing

Connections

Expansion / Slip Connection

About this detail

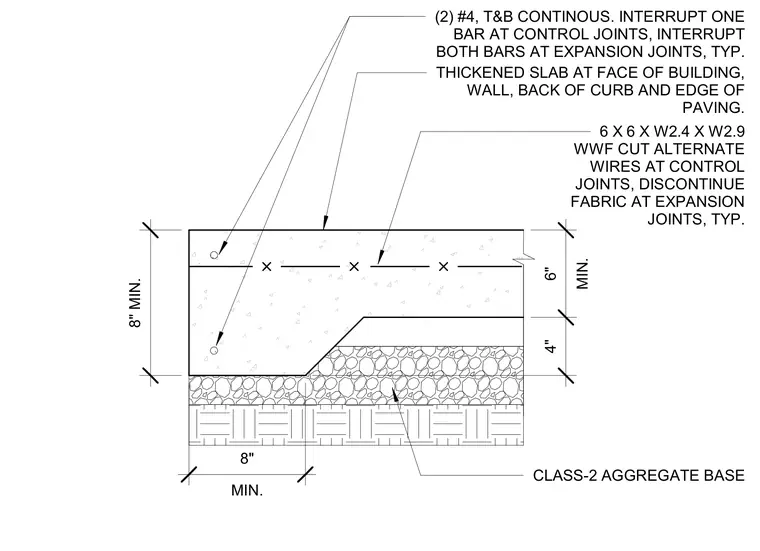

A thickened concrete paving slab edge occurs at the face of a building, wall, back of curb, or edge of paving. The six-inch thick concrete slab features two number four continuous reinforcing bars placed top and bottom, along with six by six W2.4 by W2.9 welded wire fabric. At control joints, one reinforcing bar is interrupted and alternate wires of the fabric are cut, while at expansion joints both bars and the fabric are discontinued. The concrete slab rests on a minimum four-inch thick layer over a minimum eight-inch Class-2 aggregate base.
