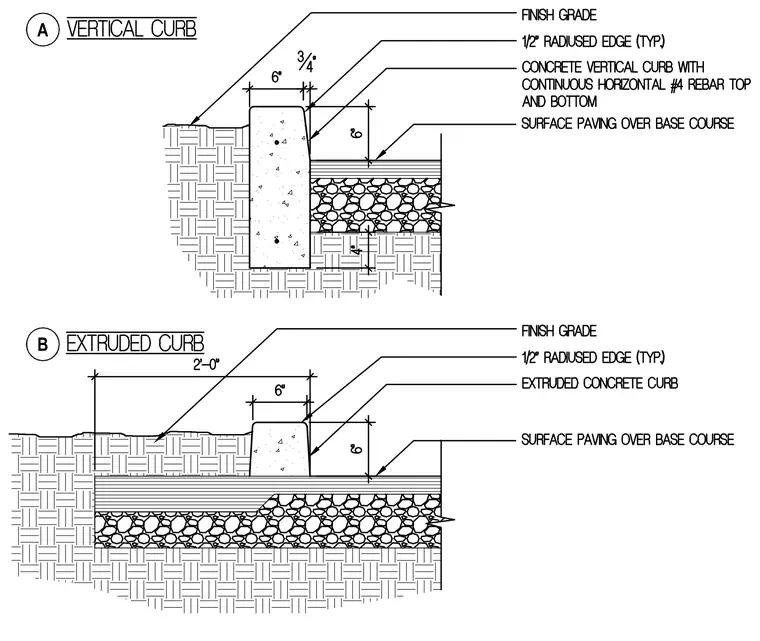

Two typical concrete curb configurations sit adjacent to surface paving and base course layers. The vertical curb features a six-inch top width with a one-half-inch radiused edge and continuous horizontal number four reinforcing bars at the top and bottom. The extruded curb sits atop the extended surface paving and base course assembly. Both configurations indicate finish grade transitions and subgrade conditions.
