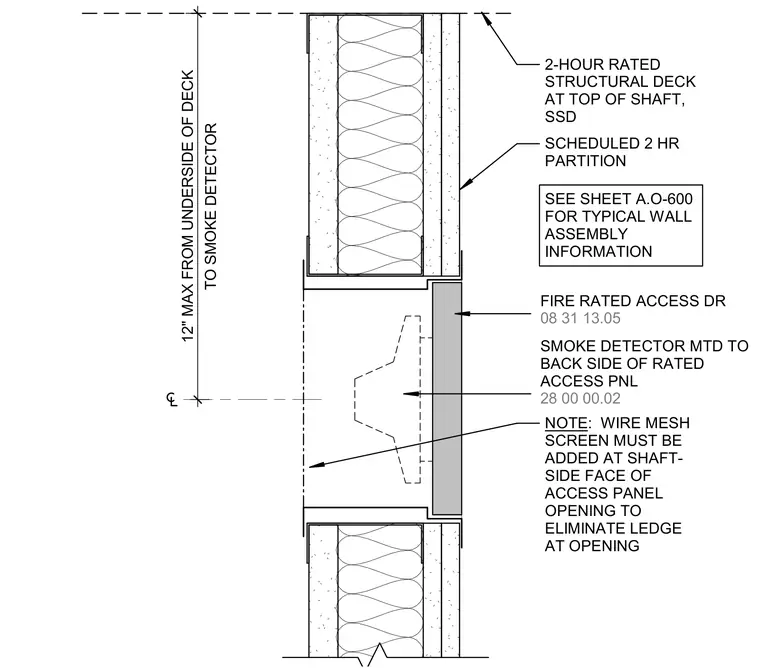

A fire-rated access door is installed within a scheduled two-hour rated partition at an elevator shaft, terminating below a two-hour rated structural deck. A smoke detector is mounted to the back side of the rated access panel, positioned within twelve inches maximum from the underside of the deck. A wire mesh screen is added at the shaft-side face of the access panel opening to eliminate any ledge at the opening. Typical wall assembly information is referenced on sheet A.O-600.
SEE SHEET A.O-600 FOR TYPICAL WALL ASSEMBLY INFORMATION SCHEDULED 2 HR PARTITION TO SMOKE DETECTOR 12" MAX FROM UNDERSIDE OF DECK NOTE: WIRE MESH SCREEN MUST BE ADDED AT SHAFT- SIDE FACE OF ACCESS PANEL OPENING TO ELIMINATE LEDGE AT OPENING 2-HOUR RATED STRUCTURAL DECK AT TOP OF SHAFT, SSD 08 31 13.05 FIRE RATED ACCESS DR 28 00 00.02 SMOKE DETECTOR MTD TO BACK SIDE OF RATED ACCESS PNL
