Hollow Metal Door Sill at Concrete Slab on Grade

Materials

Elements

About this detail

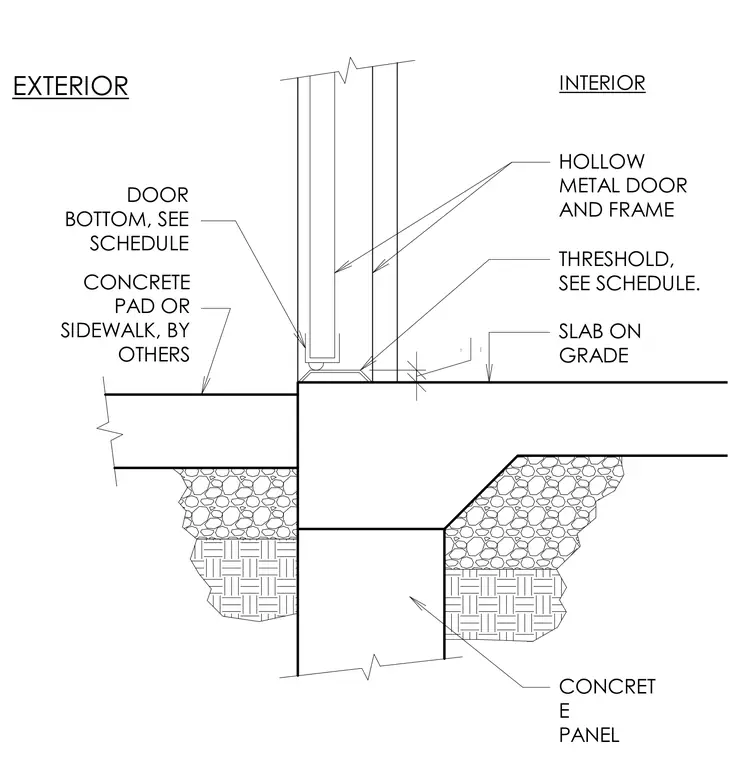

The hollow metal door and frame sit atop a threshold spanning the interior slab on grade. An exterior concrete pad or sidewalk, provided by others, abuts the exterior side of the threshold. A maximum half-inch clearance is maintained at the threshold condition. The assembly rests on a concrete panel and grade foundation with compacted sub-base.
