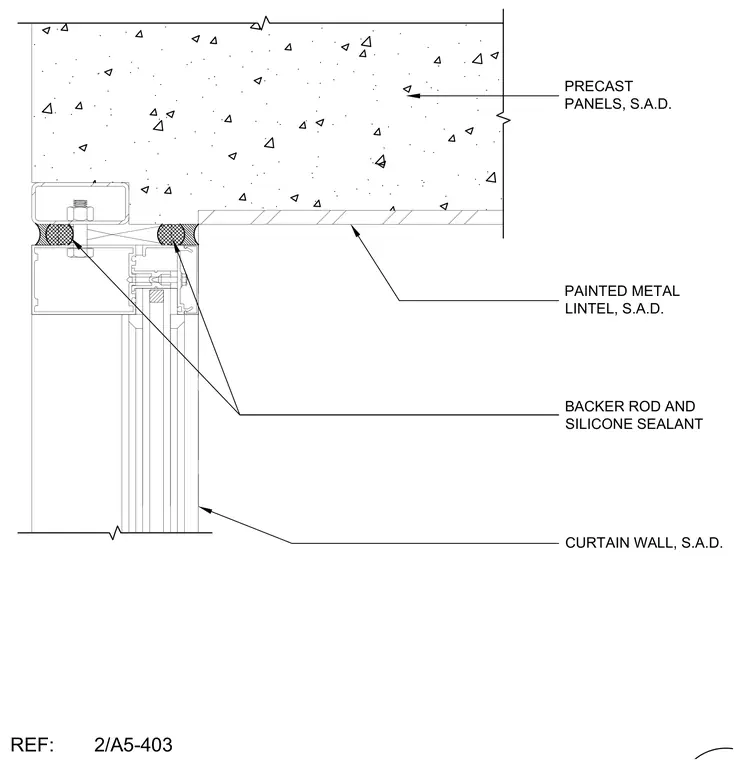

A curtain wall head interfaces with an overhead precast concrete panel and a painted metal lintel. The joint between the aluminum framing and the concrete assembly is sealed with backer rod and silicone sealant. A bolted connection secures the aluminum curtain wall frame beneath the precast panel and lintel assembly.
BACKER ROD AND SILICONE SEALANT PRECAST PANELS, S.A.D. PAINTED METAL LINTEL, S.A.D. CURTAIN WALL, S.A.D. REF: 2/A5-403
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
