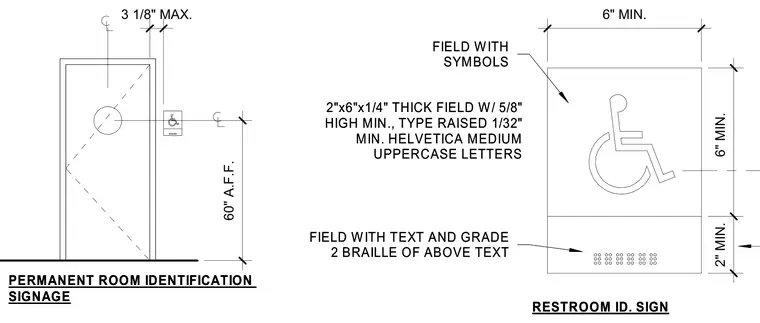

Permanent room identification signage is mounted at sixty inches above finished floor to the centerline of the sign. The sign features a tactile field with raised Helvetica medium uppercase letters standing five-eighths inch high minimum with a one-thirty-second inch minimum raise, paired with Grade 2 Braille below. Sign dimensions specify a six-inch minimum width with a six-inch minimum symbol field and a two-inch minimum text and braille field. The sign is positioned adjacent to the latch side of the door within a three-and-one-eighth-inch maximum centerline offset from the door frame.
60" A.F.F. 6" MIN. 2" MIN. 6" MIN. RESTROOM ID. SIGN FIELD WITH SYMBOLS FIELD WITH TEXT AND GRADE 2 BRAILLE OF ABOVE TEXT 2"x6"x1/4" THICK FIELD W/ 5/8" HIGH MIN., TYPE RAISED 1/32" MIN. HELVETICA MEDIUM UPPERCASE LETTERS PERMANENT ROOM IDENTIFICATION SIGNAGE 3 1/8" MAX. RESTROOM ID. SIGN FIELD WITH SYMBOLS FIELD WITH TEXT AND GRADE 2 BRAILLE OF ABOVE TEXT 2"x6"x1/4" THICK FIELD W/ 5/8" HIGH MIN., TYPE RAISED 1/32" MIN. HELVETICA MEDIUM UPPERCASE LETTERS PERMANENT ROOM IDENTIFICATION SIGNAGE
