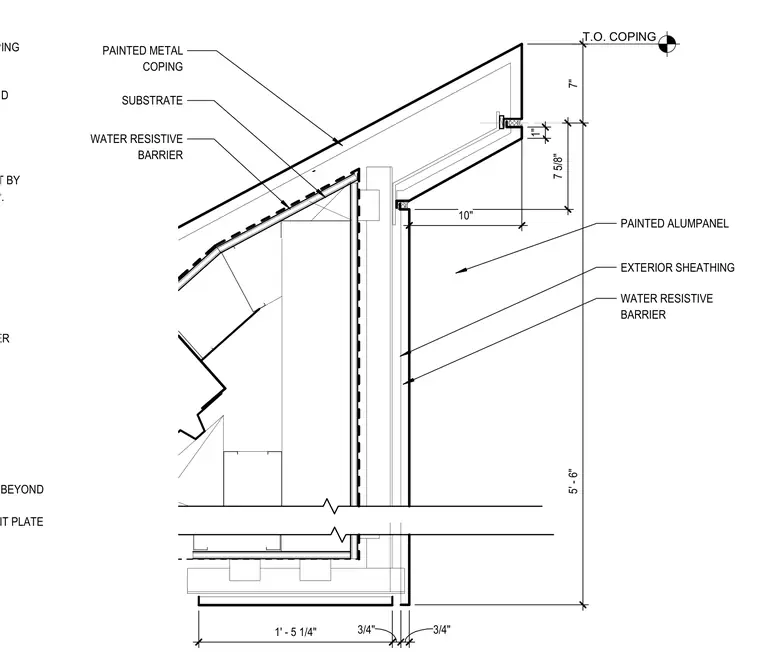

A painted metal coping with a substrate sits atop the roof crown, tied back with a water-resistive barrier over exterior sheathing. A painted aluminum panel extends down the face of the assembly, supported by a structural steel bent plate. Continuous flashing is provided by the curtain wall manufacturer. The top of the coping reaches a reference height of 5 feet 6 inches above the lower datum.
WATER RESISTIVE BARRIER SUBSTRATE PAINTED METAL COPING PAINTED ALUMPANEL WATER RESISTIVE BARRIER EXTERIOR SHEATHING T.O. COPING 7 " 5 ' - 6 " 7 5 / 8 " 1 ' - 5 1 / 4 " 3 / 4 " 3 / 4 " 1 " 1 0 " PAINTED ALUMINUM COPING STRUCTURAL STEEL BENT PLATE CONT FLASHING SUPPORT BY CURTAIN WALL MANF. TYP. FACE OF CURTAIN WALL BEYOND RESISTIVE WATER BARRIER FACE OF COPING BEYOND
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
