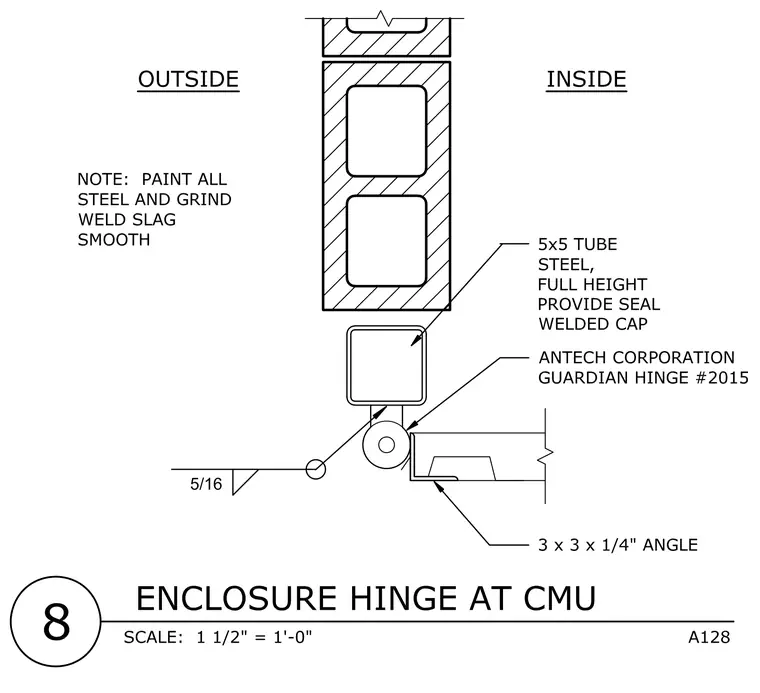

An Antech Corporation Guardian Hinge number 2015 connects an angle-framed panel to a five-by-five-inch hollow structural section tube running full height against a concrete masonry unit wall. The steel tube features a sealed welded cap and is detailed with a five-sixteenths inch fillet weld with field weld symbol notes to paint all steel and grind weld slag smooth. A three-by-three-by-one-quarter-inch angle frames the adjacent panel edge, engaging the heavy-duty pivot hinge on the inside face.
