Architectural · A-FQDE4

Quartz Countertop and Tile Finish at Cold-Formed Steel Pony Wall

Materials

Steel Cold-formed Steel Stainless Steel Timber / Wood Masonry / CMU Aluminum Metal (misc.)

Elements

Beams Walls Floors / Slabs Connections / Plates

Connections

HSS Connection

About this detail

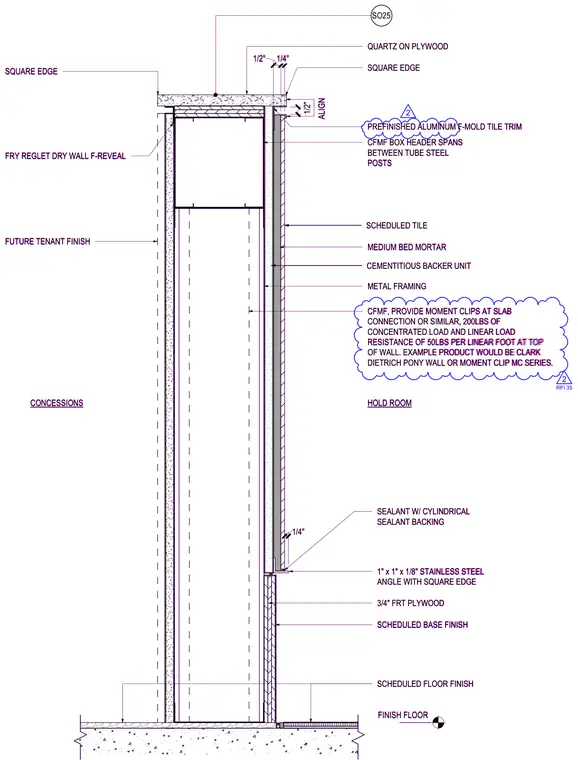

A low partition wall, or pony wall, separates a concessions area and a hold room with a cold-formed metal framing core and tube steel posts. The top of the wall is finished with a square-edge quartz countertop mounted on plywood, backed by a Fry Reglet drywall f-reveal on one side and a prefinished aluminum f-mold tile trim on the other. The face of the wall receives a scheduled tile finish set in medium bed mortar over a cementitious backer unit. The base of the tile run is supported by a one-inch by one-inch by one-eighth-inch stainless steel angle, positioned above fire-retardant treated plywood and a scheduled base finish. The assembly is anchored to the floor slab with metal framing and moment clips designed to resist two hundred pounds of concentrated load and fifty pounds per linear foot of linear load at the top of the wall.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
