Architectural · A-FQB64

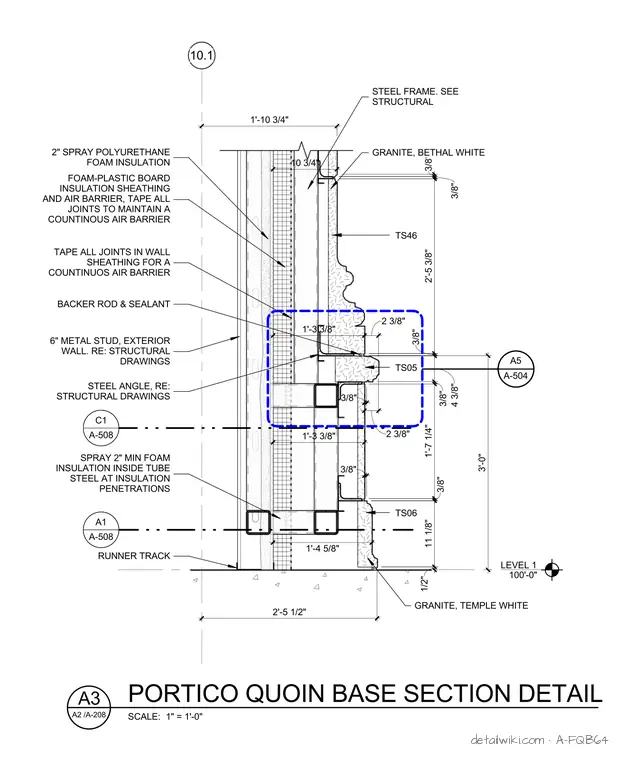

Portico Quoin Base Section Detail

Materials

Cold-formed Steel Metal (misc.)Steel Stone Timber / Wood

Elements

Entrances Facades / Cladding Insulation Roof / Floor Openings Walls Waterproofing / Flashing

Connections

HSS Connection

About this detail

A portico quoin base assembly features Temple White and Bethal White granite cladding supported by a steel frame and six-inch metal stud backup wall. The exterior assembly incorporates two inches of spray polyurethane foam insulation, foam-plastic board insulation sheathing, and a taped air barrier. Steel angles and tube steel members connect the granite quoin to the structural steel frame per structural drawings. Backer rod and sealant are detailed at joints, with runner tracks and spray foam provided at insulation penetrations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
