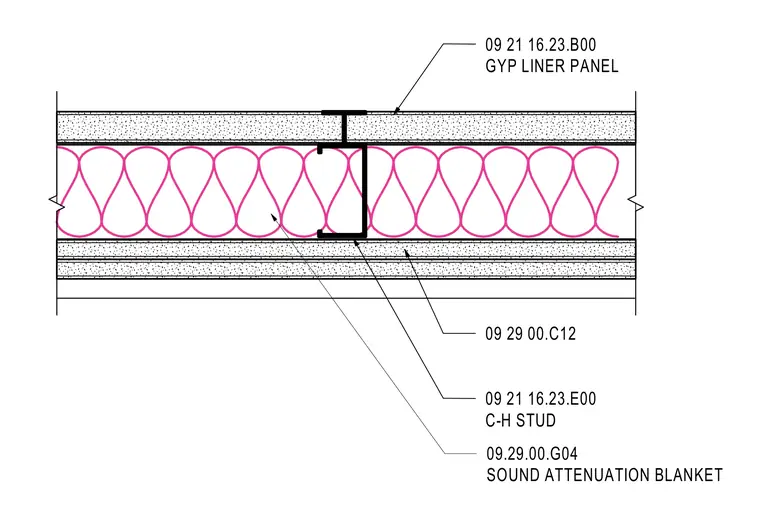

This shaft wall partition assembly consists of C-H studs framed between gypsum liner panels with sound attenuation blankets installed in the cavity. Layers of gypsum board face both sides of the assembly. MasterFormat specification numbers are called out for the gypsum liner panels, sound attenuation blankets, and C-H studs.
09 21 16.23.B00 GYP LINER PANEL 09.29.00.G04 SOUND ATTENUATION BLANKET 09 21 16.23.E00 C-H STUD 09 29 00.C12
