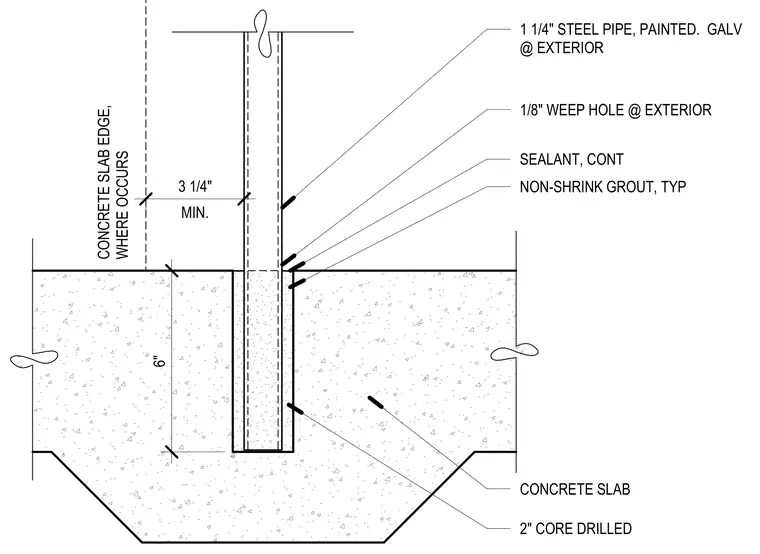

A one-and-one-quarter-inch steel pipe post is set into a two-inch core-drilled hole within a concrete slab having a six-inch minimum thickness and a three-and-one-quarter-inch slab edge distance where applicable. The annular space inside the core-drilled hole is filled with continuous non-shrink grout. Continuous sealant is applied at the top interface between the pipe and the slab. An eighth-inch weep hole is provided at the exterior face. The steel pipe is painted, and galvanized at exterior locations.
6" MIN. 3 1/4" CONCRETE SLAB EDGE, WHERE OCCURS 1 1/4" STEEL PIPE, PAINTED. GALV @ EXTERIOR 1/8" WEEP HOLE @ EXTERIOR SEALANT, CONT NON-SHRINK GROUT, TYP CONCRETE SLAB 2" CORE DRILLED
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
