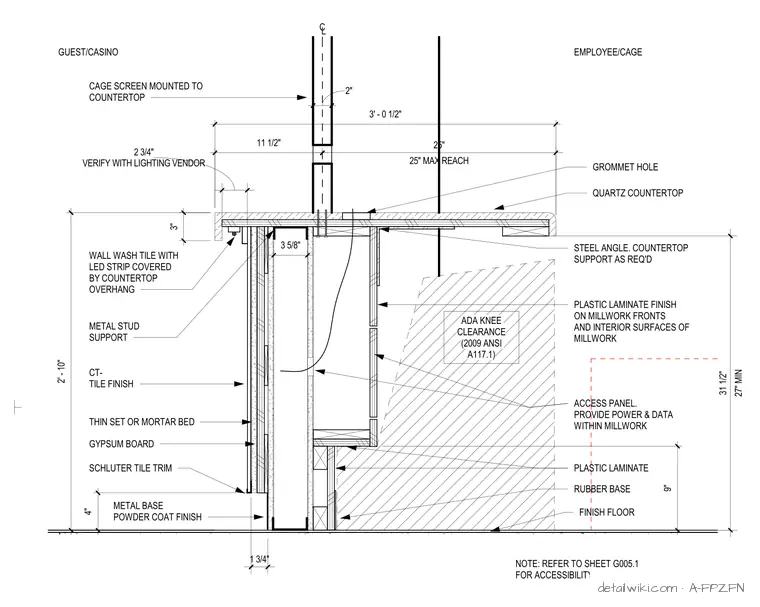

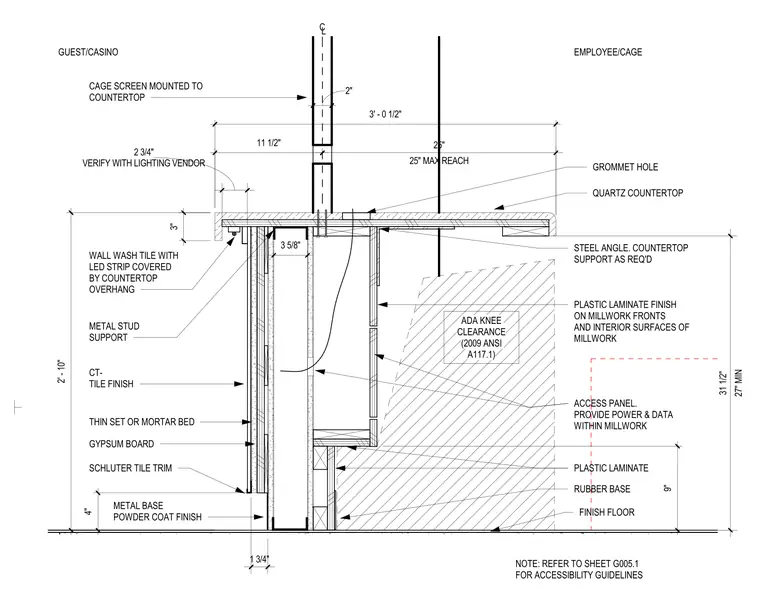

ADA-compliant cashier counter assembly featuring a quartz countertop supported by a metal stud frame. The guest side consists of a tile finish over gypsum board and a metal base with a powder coat finish; the employee side features plastic laminate millwork fronts and interior surfaces. A steel angle supports the countertop overhang, concealing an LED strip for wall wash lighting. The assembly provides an ADA knee clearance zone per 2009 ANSI A117.1 standards, with an access panel for power and data integration within the millwork. A cage screen mounts to the countertop, and a rubber base installs at the floor level on the employee side.
