Tapered crickets and roof insulation are installed per manufacturer specifications to provide positive drainage to the roof drain. Walk pads are included for general maintenance access and located according to project specifications.

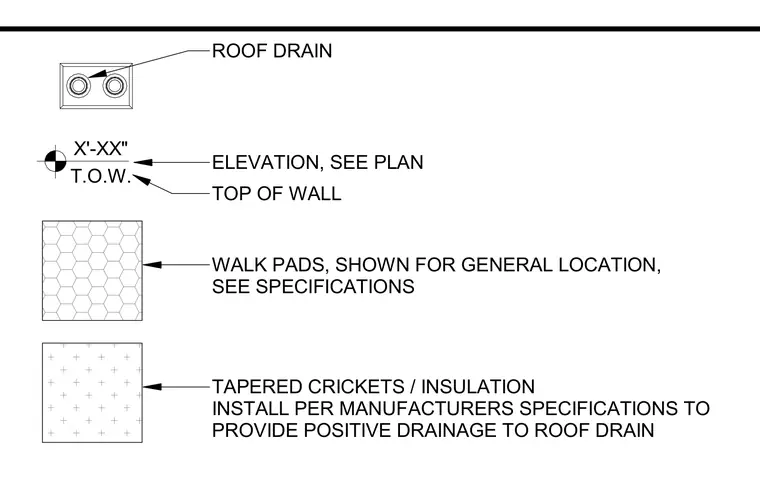

ROOF DRAIN ELEVATION, SEE PLAN X'-XX" T.O.W. TOP OF WALL TAPERED CRICKETS / INSULATION INSTALL PER MANUFACTURERS SPECIFICATIONS TO PROVIDE POSITIVE DRAINAGE TO ROOF DRAIN WALK PADS, SHOWN FOR GENERAL LOCATION, SEE SPECIFICATIONS
