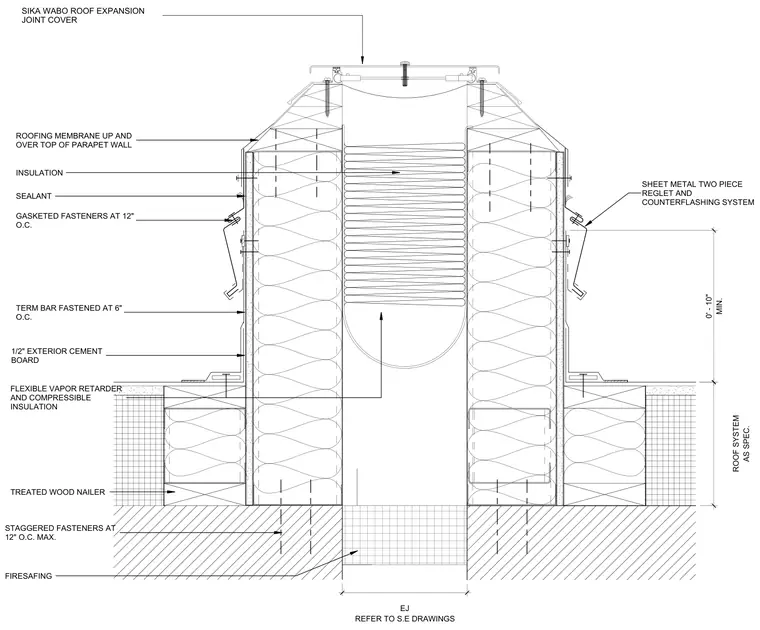

This roof expansion joint assembly is centered between dual parapet walls and spanned by a Sika Wabo roof expansion joint cover. The roofing membrane extends up and over the top of the parapet wall, secured with staggered fasteners at a maximum of twelve inches on center into treated wood nailers. A flexible vapor retarder, compressible insulation, and firesafing fill the joint cavity below. Exterior faces are clad with one-half-inch exterior cement board fastened with a termination bar spaced at six inches on center. A sheet metal two-piece reglet and counterflashing system with gasketed fasteners at twelve inches on center protects the vertical joint terminations, leaving a minimum vertical clearance of zero feet ten inches above the roof system.
SHEET METAL TWO PIECE REGLET AND COUNTERFLASHING SYSTEM AS SPEC. ROOF SYSTEM REFER TO S.E DRAWINGS EJ STAGGERED FASTENERS AT 12" O.C. MAX. TREATED WOOD NAILER TERM BAR FASTENED AT 6" O.C. GASKETED FASTENERS AT 12" O.C. SEALANT FLEXIBLE VAPOR RETARDER AND COMPRESSIBLE INSULATION INSULATION FIRESAFING 1/2" EXTERIOR CEMENT BOARD MIN. 0' - 10" ROOFING MEMBRANE UP AND OVER TOP OF PARAPET WALL SIKA WABO ROOF EXPANSION JOINT COVER
