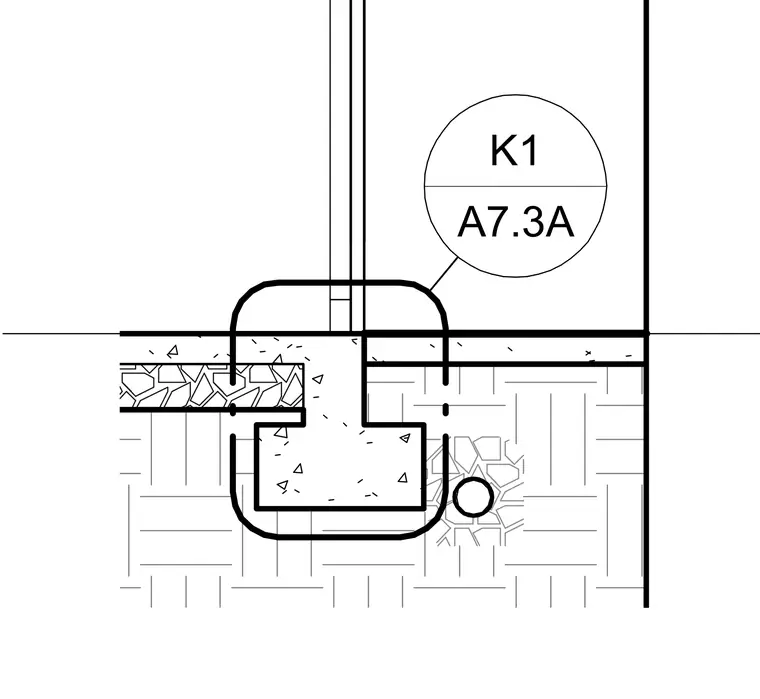

This wall section shows a concrete foundation wall bearing on a continuous concrete footing below grade. A concrete slab-on-grade abuts the stem wall, with gravel sub-base and drainage piping placed adjacent to the footing. A vertical wall assembly extends upward from the top of the foundation.
