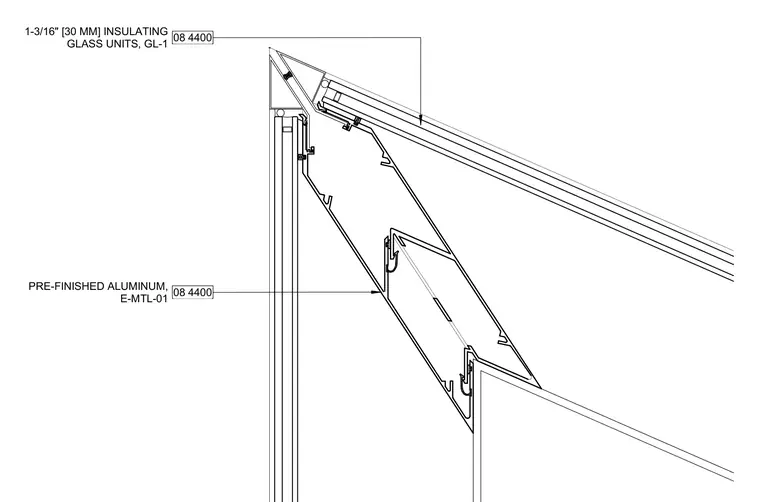

One-and-three-sixteenths-inch [30 millimeter] insulating glass units designated as GL-1 install within pre-finished aluminum framing members designated as E-MTL-01. The assembly incorporates extruded aluminum profiles secured together with internal gaskets and fasteners to support the glass panels.
08 4400 1-3/16" [30 MM] INSULATING GLASS UNITS, GL-1 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01
