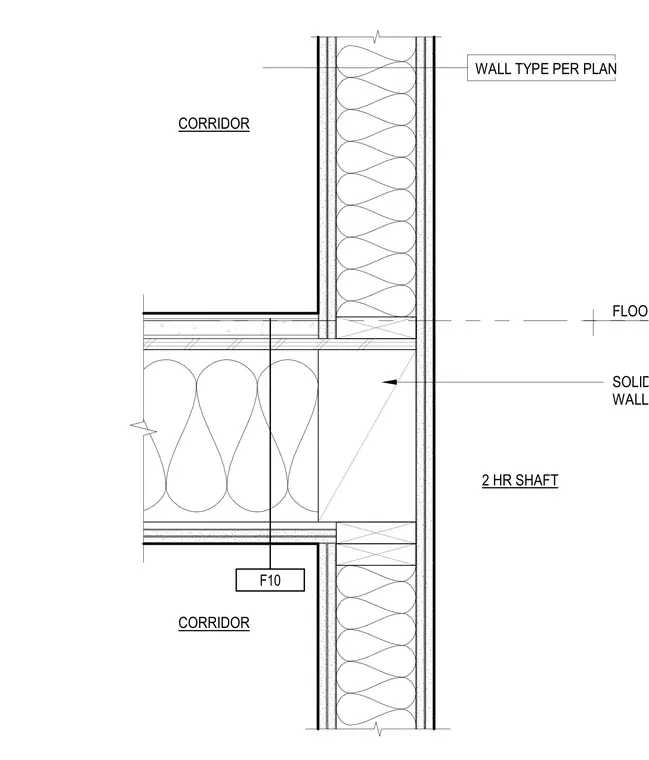

A two-hour fire-rated shaft wall assembly meets a wood floor level with solid blocking filling the width of the wall including sheathing. A corridor wall type specified per plan abuts the shaft assembly at the floor line. Floor level F10 aligns with the continuous blocking detail between framing levels.
2 HR SHAFT CORRIDOR CORRIDOR WALL TYPE PER PLAN SOLID BLOCKING FOR WIDTH OF WALL, INCLUDING SHEATHING FLOOR LEVEL F10
