A one-and-a-half-inch-thick MDF shelf is secured to the partition using a concealed floating shelf support bracket, specifically a Hafele 283.33.904 or similar. The bracket anchors into fire-treated wood blocking concealed within the wall cavity. The shelf projects one foot from the partition face with a finish specified elsewhere.

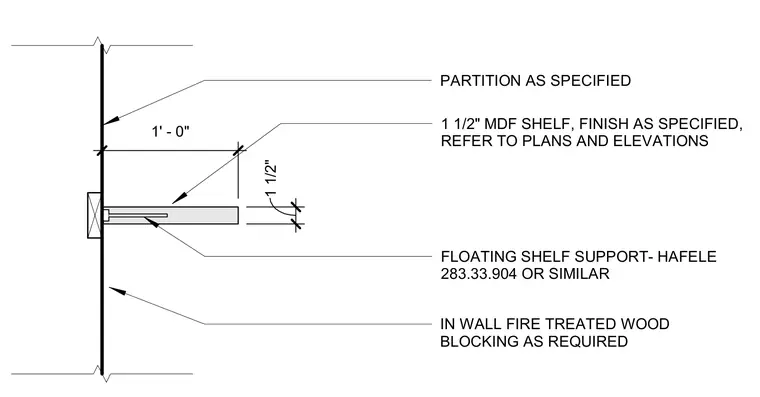

FLOATING SHELF SUPPORT- HAFELE 283.33.904 OR SIMILAR 1 1/2" MDF SHELF, FINISH AS SPECIFIED, REFER TO PLANS AND ELEVATIONS IN WALL FIRE TREATED WOOD BLOCKING AS REQUIRED PARTITION AS SPECIFIED 1' - 0" 1 1/2"
