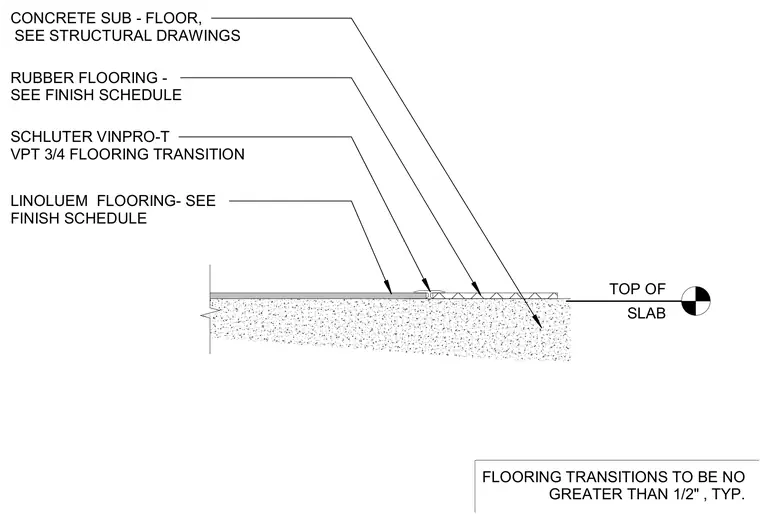

Linoleum flooring and rubber flooring finish materials transition over a concrete subfloor, separated by a Schluter Vinpro-T transition strip. Flooring transitions are detailed to be no greater than one-half inch typical. Finish materials are specified per the finish schedule while the concrete subfloor is detailed per the structural drawings.
SLAB TOP OF SCHLUTER VINPRO-T VPT 3/4 FLOORING TRANSITION LINOLUEM FLOORING- SEE FINISH SCHEDULE CONCRETE SUB - FLOOR, SEE STRUCTURAL DRAWINGS RUBBER FLOORING - SEE FINISH SCHEDULE FLOORING TRANSITIONS TO BE NO GREATER THAN 1/2" , TYP.
